I(P)GS-3008

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet (For PoE Model)

Switch Architecture

Back-plane (Switching Fabric): 16Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber / Gigabit Ethernet port

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & Relay connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Amber);
PoE: Link/Act (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Non-PoE model:
9~60VDC (12V model)
9~36VDC (24V model)
PoE model:
9.5V~56VDC (12V model)
9~36VDC (24V model)
44~56VDC (48V PoE model)

Power Consumption

10W

PoE Budget (For PoE Model)

60W at 12V input; 120W at 24V input (12V model)
100W at 24V input (24V model)
240W at 48V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
Higher PoE budget can be applied upon request. **

PoE pin assignment (For PoE Model)

RJ-45 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

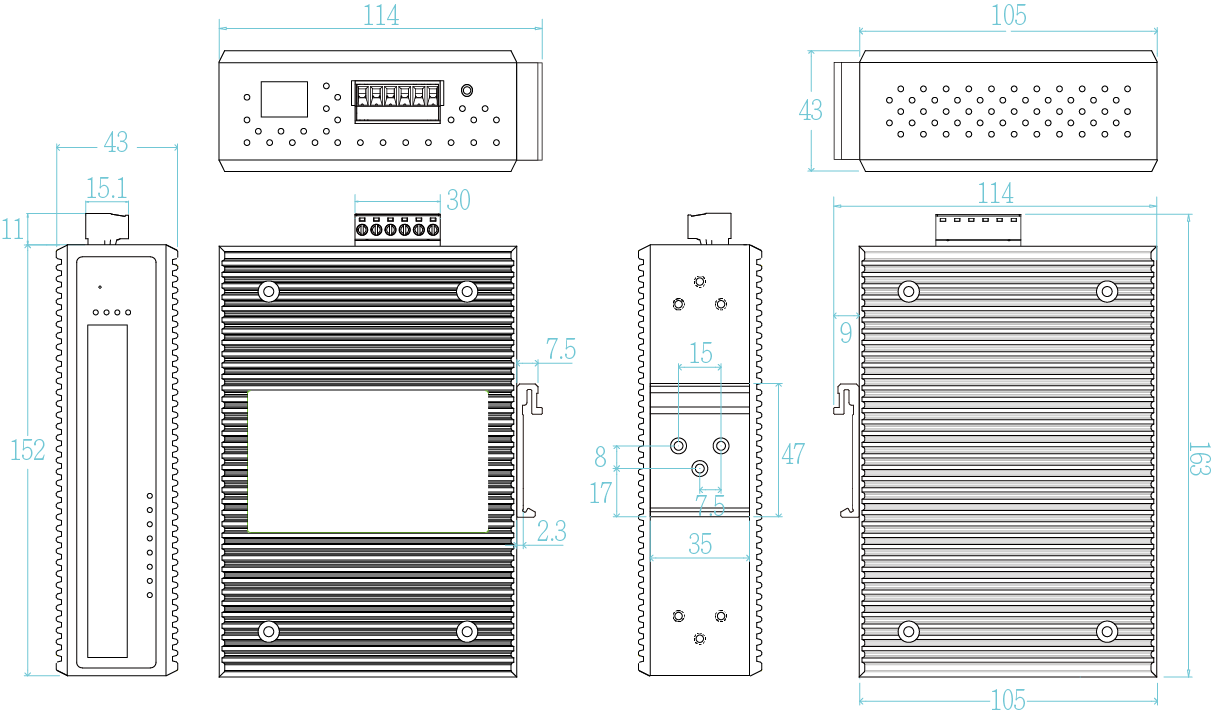

Case Dimension

PoE model, Metal case.
IP-30, 43 (W) x 105 (D) x 152 (H) mm
Non-PoE model, Metal case. IP-30,
35 (W) x 105 (D) x 152 (H) mm

Weight

660 g

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

FCC Part 15 Class A
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024: CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Safety

EN62368 (LVD)

Stability Testing

IEC 60068-2-27 (Shock),
IEC 60068-2-31 (Shock),
IEC 60068-2-64 (Vibration),
IEC 60068-2-80 (Vibration)

Vehicle certificate

E13 marking (12V/24V Model)

MTBF

791,695 Hrs (Standards: IEC 62380)

Warranty

5 years

Management

SNMP v1 v2c, v3/ Web/Telnet/CLI

SNMP MIB

RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB,
RFC 1573 IF MIB
Partial RFC 1757 RMON,
Bridge MIB,
LLDP MIB
Private MIB

Enhanced G.8032 ring

Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring enhanced mode)
Support various ring/chain topologies
Includes basic single ring and enhanced ring
Enhanced G.8032 ring configuration with ease
Cover multicast & data packets protection

PoE Management (For PoE Model)

1. PoE Detection to check if PD is hang up then restart the PD
2. PoE Scheduling to On/OFF PD upon routine time table

Per Port PoE Status (For PoE Model)

On/ Off, voltage, current, watts, temperature

User friendly UI

1. Auto topology drawing
2. Topology demo
3. Complete CLI for professional setting

Port Trunk with LACP

LACP Port Trunk: 8 Trunk groups/Maximum 10 trunk members

LLDP

Supports LLDP to allow switch to advise its identification and capability on the LAN

CDP

Cisco Discovery Protocol for topology mapping

VLAN

Port Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.)
GVRP

IPv6/4

Present

RSTP/MSTP

Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree 8 MSTI

Quality of Service

The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

Support IEEE802.1p class of service, per port provides 8 priority queues

Remote Admin

Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.

Login Security

Supports IEEE802.1X Authentication/RADIUS

Port Mirror

Support 3 mirroring types: “RX, TX and Both packet”

Network Security

Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/static MAC-Port binding
Ingress ACL L2/L3
SSL/ SSH v2 for Management
HTTPS for secure access to the web interface

IGMP

Support IGMP snooping v1,v2,v3; 1024 multicast groups; IGMP router port ; IGMP query; GMRP

Static MAC-Port bridge

Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application

Bandwidth Control

Support ingress packet filter.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter.

Flow Control

Supports Flow Control for Full-duplex and Back Pressure for Half-duplex

System Log

Supports System log record and remote system log server

Relay Alarm

Provides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

Protection

1. Miss-wiring avoidance
2. Node failure protection
3. Loop protection

SNMP Trap

Up to 10 trap stations; trap types including:

1. Device cold start
2. Authorization failure
3. Port link up/link down
4. DI/DO open/close
5. Topology change(ITU ring)
6. Power failure
7. Environmental abnormal

DHCP

Provide DHCP Client/ DHCP Server/DHCP Option 82 (Relay & Server)/Port based DHCP; DHCP Snooping; DHCP option 66

Mac based DHCP Server

Assign IP address by Mac that can include dumb switch in DHCP network

DNS

Provide DNS Client feature and support Primary and Secondary DNS server.

SNTP

Supports SNTP to synchronize system clock in Internet

Environmental Monitoring**

System status for input voltage, current, consumption and ambient temperature to be shown in GUI and sent alerting if any abnormal status (-M models)

Firmware Update

Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade

Configuration
upload and download

Supports editable configuration file for system quick installation;
Support factory reset button to restore all settings back to factory default;
USB port for upload/download configuration by USB dongle
