Cable / Connector / Bracket

CABLE

Model name	Description
ECONM12-5P(F)70CM CABLE	5 Pin M12 Power Female 90° angle Connector+ 70 CM CABLE
ECONM12-5P(F)1.5M CABLE	5 Pin M12 Power Female 90° angle Connector+ 1.5 M CABLE
ECONM23-5P(F)70CM CABLE	5 Pin M23 Power Female 90° angle Connector+ 70 CM CABLE, Made in Taiwan
ECONM23-5P(F)1.5M CABLE	5 Pin M23 Power Female 90° angle Connector+ 1.5 M CABLE, Made in Taiwan
ECONM23-5P(F)70CM CABLE-C	5 Pin M23 Power Female 90° angle Connector+ 70 CM CABLE, Made in China
ECONM12-4P(F)1.5M CABLE	4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECONM12-08M2-CONSOLE	8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm
ECABM12X83MSTP	8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECAB124030MJS	4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm
ECABMO02-QOP2-3.0-MM-OM3	Q-ODC 2 plug/LC multi-mode fiber, MM-OM3, 300cm
ECABMO02-QOP2-3.0-SM-OS2	Q-ODC 2 plug/LC single-mode fiber, SM-OS2, 300cm
ECONM12-05A(F) to MCP 6P-20CM CABLE	5 pin M12 (Female) A-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models)

CONNECTOR

Model name	Description
ECONM23-5P(F)-S-180	M23 5Pin (Female) 180 Degree Screw Type Connector
ECONM23-5P(F)-S-90	M23 5Pin (Female) 90 Degree Screw Type Connector
ECONM12-05A(F)-C-180	M12 5Pin (Female) A-coded 180 Degree Crimp Type Connector
ECONM12-04A(F)-C-180	4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08A(M)-180	8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB
ECONM12-05A(M)-C-180	5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON	8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON
ECONM12-04D(M)-C-180	4 pin M12 (Male) D-coded 180 degree crimp type connector for data

ADAPTER CABLE

Model name	Description

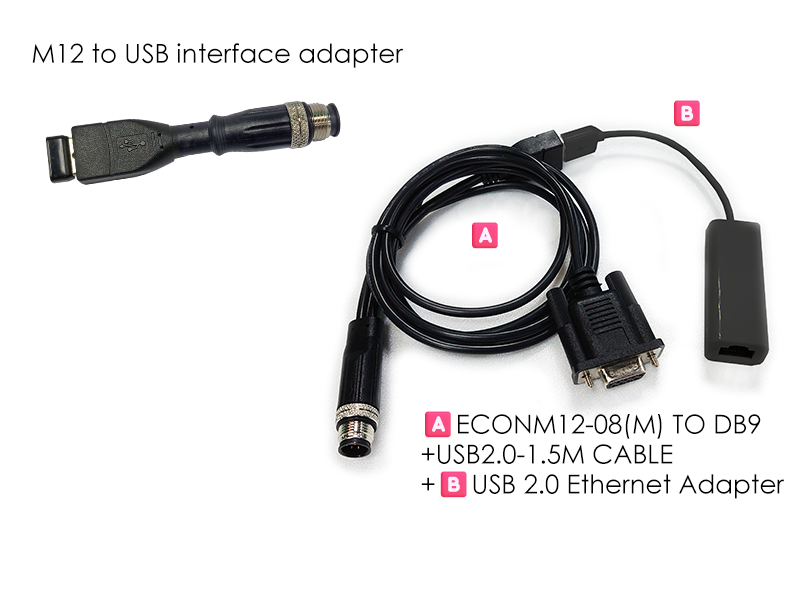

M12 to USB interface adapter	8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm
USB 2.0 Ethernet Adapter	USB 2.0 to RJ45 Ethernet Adapter
ECONM12-08(M) TO DB9+USB2.0-1.5M CABLE	8 pin M12 (Male) A-coded 180 degree M12 to USB2.0 to DB9 (Female) cable, 150cm

BRACKET

Model name	Description

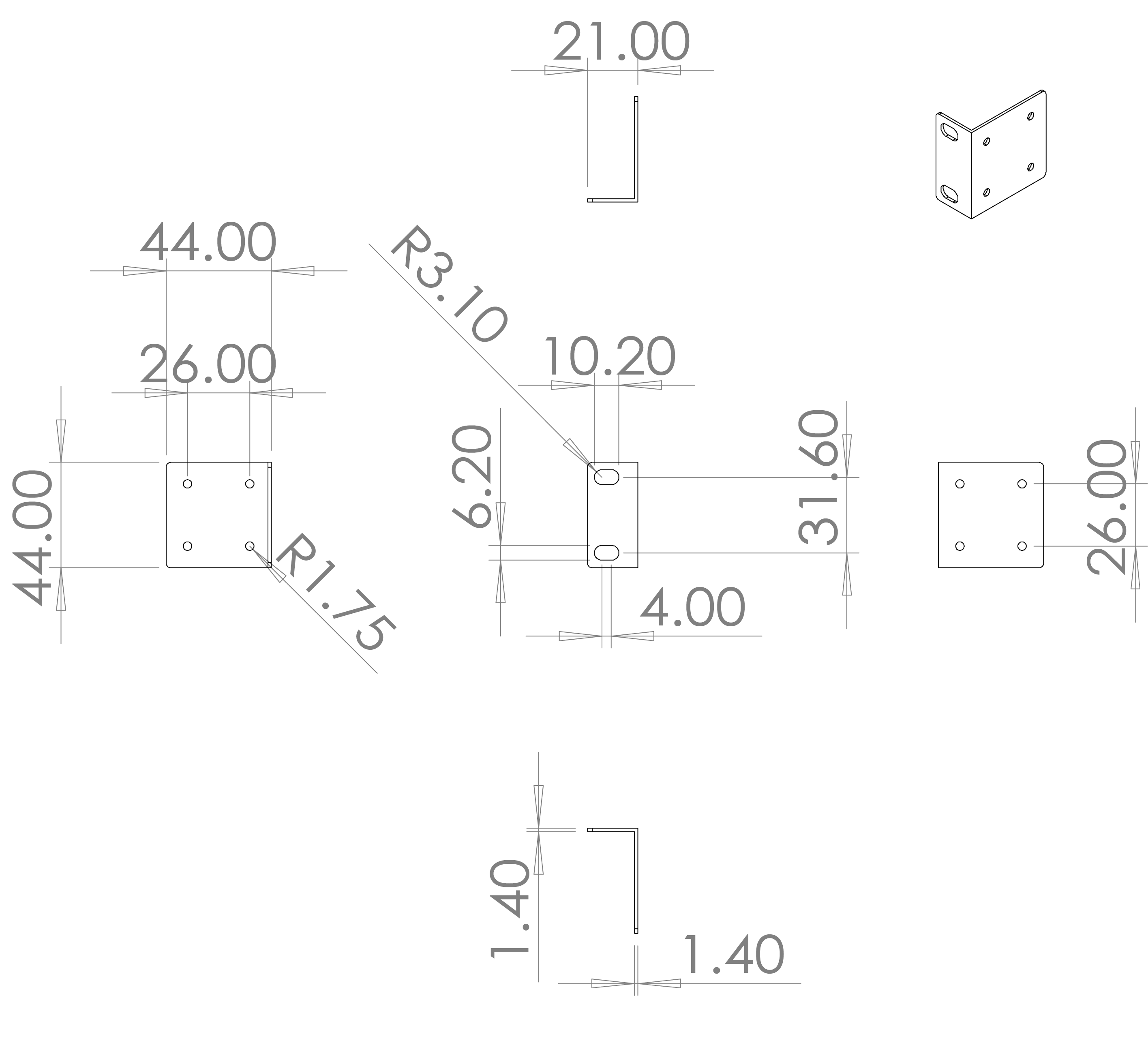

MBAK19002	L-Bracket that can change 90 degree of DIN rail mounting
MBAK19002 L-Bracket Installation
MBAK19003	Wall mount bracket for 74 (W) x 105 (D) x 152 (H) mm / 74 (W) x 135 (D) x 152 (H) / 96 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19004	19” Rack Mounting Kit for 74 (W) x 105 (D) x 152 (H) mm / 74 (W) x 135 (D) x 152 (H) mm Industrial Switches
MBAK19005	19” Rack Mounting Kit for 35 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19009	19” Rack Mounting Kit for 43 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19006	Side DIN Rail mounted fin for 74 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19007	Side DIN Rail mounted fin for 74 (W) x 135 (D) x 152 (H) mm Industrial Switches
MBAK19008	Wall mount bracket for for 35 (W) x 105 (D) x 152 (H) mm / 43 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19010	19” 10-slot Rackmount Kit for industrial converter
MBAK19011	L-Bracket for Mounting MBAK19010 with the Industrial Converter
MBAK19010 + MBAK19011 Installation
