IMR-3002

Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2 serial ports + 2 Gigabit Ethernet (incl.1 PD) w/Load Balancing, VPN, Protocol Gateway, Storage**; 24V input

  • Up to 2 concurrent modems for 3G/4G LTE Link & GPS(2L model/4 SIMs)
  • Built-in 2 Gigabit Ethernet ports (1LAN+1WAN or 2LAN) (incl. 1PD)
  • Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
  • VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE
  • Optional EMMC Flash storage on-board**
  • Optional eSIM chip enables router with versatile data plans**
  • Load Balancing built-in 5 mechanism
  • Support NAT and Firewall
  • Support Modbus gateway
  • Support 2 RS422/RS485 ports or 2x RS232 ports
  • Dual input range from 9V to 56VDC (24V model); Dual Input 9V~36VDC (24V-IGN model)
  • Vehicle E-marking** certificate (M12 model)
  • LTE graphic signal strength
  • Editable login page of captive portal for hot-spot application
  • ITxPT design w/ ignition function**
  • USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware
  • EN50155/61373/45545 verification for railway application (except 24V-IGN model)


EN50155 FCC CE UKCA WEEE RoHS2


Datasheet   Hardware Manual
For latest firmware and web UI user manual, please contact us.

OVERVIEW

Lantech IMR-3002 series is a next generation industrial multi-function VPN router w/ up to 2x LTE modem + 2x Gigabit Ethernet (incl.1 PD) + 2 serial ports that supports advanced function of VPN, Load-balancing, Protocol gateway(Modbus), EMMC Flash Storage**, and LTE quad SIM fail-over for industrial applications. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.


Dual concurrent LTE design 4G/3G for load-balancing
With dual LTE module design (2L model), 4 SIM card slots, IMR-3002 can allow auto-swap, failover & failback between multiple service providers for real non-stop connection. With concurrent LTE modules, it can also allocate bandwidth by “ Load Balancing with 8 schemes between multiple WANs.


With one mobile LTE module, 2 SIM card slots, IMR-3002-1L provides redundant link between two service providers.


Both GPS and Russian GLONASS systems are supported.


Load Balancing with 5 mechanisms for multi-WANs
IMR-3002 supports Load Balancing for LTE/WAN (client mode) connections. There are five schemes for Load Balancing function:


Pack

Algorithm

Description

Basic

Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

Priority

Select the active WAN according to priority.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

Custom Route

Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


2 port serial connection, Modbus gateway
It builds in 2 port serial connection for RS232, RS422, RS485.


The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.


Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.


Optional eSIM**
By replacing physical SIM, optional eSIM chip will allow users to purchase data plans at low prices from local carriers in the world.


VPN and firewall
Besides traditional VPN peer to peer tunneling, IMR-3002 support latest Multi-Site VPN function that is an efficient way for mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe.


It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE, and NAT for various VPN applications.


The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number


Email notice; Event log; Remote Web control

In case of events, the IMR-3002 will immediately send email and trap. The event log can be sent via syslog, emails or trigger the alarm relay. When the router is at remote area with limited access, Web control can help to get router status or remotely reboot by Web.


24V isolated input voltage selection: dual 9V-56VDC (24V model) or dual 9V~36VDC (24V-IGN model)
The IMR-3002 is able to work from 9VDC to 56VDC (24V model) or dual 9V~36VDC (24V-IGN model)


Two port Gigabit Ethernet can be supported as 1LAN+1WAN or 2LAN models.


USB port for back up, restore configuration and upgrade firmware; Dual image firmware
The built-in USB port can upload/download the configuration through USB dongle for router replacement.


It supports dual-image firmware to choose which one to start.


Dual image firmware
It supports dual-image firmware to choose which one to start.


Ruggedized industrial design and FCC, CE certificate
The IMR-3002 is designed to meet with outdoor network environment with IP30 (IP43 for M12 model) housing. It passed serious tests under extensive Industrial EMI and environmental vibration and shocks standards. With CE & FCC radio certification for LTE, the IMR-3002 is best for outdoor community, vehicle, and process control automation applications. For more usage flexibilities, IMR-3003 supports wide operating temperature from -40°C to 65°C.


EN50155, EN61373 verification; E-marking** certification; ITxPT** design
The IMR-3002 series is also applicable for railway on-board/track side, vehicle and mining applications for more usage flexibilities. The series is verified with EN50155, EN61373, and EN45545 for railway applications (Except 24V-IGN model). The E-marking certificate (24V model) and ITxPT design (24V-IGN model).


Ignition Sensing*
Ignition sense allows you to delay power off your Ethernet switch with a designated time delay.


*Future Release
**Optional

FEATURES

  • Built-in two Gigabit ports and 1LAN+1WAN or 2LAN (incl.1 PD)
  • EMMC-FLASH storage**8/16/32G
  • eSIM** to allow data-plan globally
  • HTTP/HTTPS/Telnet/SSH & Administration access
  • Support IPv6 & IPv4 protocol
  • Support Multi-Site VPN for mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE and NAT for secured network connection
  • The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number
  • Support SNMP v1/v2c/v3
  • NAT/ DMZ/ Port Forwarding
  • Dual concurrent LTE 4G/3G design (2L model)for auto-swap/failover/failback between multiple ISPs for continuous service (four SIM card slots)
  • One LTE 4G/3G w/ 2 SIM card design(1L model) for mobile redundancy
  • GPS & GLONASS connection
  • Load Balancing supports 5 mechanisms between multiple WANs

    • Pack

    Algorithm

    Description

    Basic

    Fixed

    All traffic will be distributed to a single WAN.

    Failover

    Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

    Priority

    Select the active WAN according to priority.

    Weighted Round-Robin

    Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

    Custom Route

    Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


  • Built-in 2 x serial ports(RS232/RS422/RS485)
  • Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP
  • Event alerting by Syslog, SNMP Trap, Email, Relay ; Permanent local log rotation / Maxi 1K records
  • Remote Web control to get status or re-boot by Web
  • Built-in RTC to keep track of time always
  • Support SNTP to synchronize system clock
  • Support LLDP discovery protocol
  • Support DHCP Server and Client
  • Reset button for factory default mode
  • Graphic LTE signal strength
  • Firmware upgradeable through TFTP/HTTP
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port to upload/download configuration by USB dongle
  • IP 30 housing for industrial environment
  • DIN-Rail and Wall-mount** installation
  • Operation temperature -40°C to 65°C
  • Wide range input voltage from 9V-56VDC (24V model) ; dual input 9V-36VDC (24V-IGN model)
  • ITxPT design w/ ignition function**
  • EN50155 & EN61373 verification (Except 24V-IGN model)
*Future Release
**Optional

SPECIFICATIONS

Cellular Interface

Location Solutions

GPS, Glonass (EU/Americas)
GPS, Glonass, Beidou, Galileo (APAC model only)

Band Options

Asia-Pacific (APAC model)
LTE = B1, B3, B5, B7, B8, B18, B19, B21, B28, B38 (TDD), B39 (TDD), B40 (TDD), B41 (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B5, B6, B8, B9, B19

Europe & North America (EUNA model)
LTE = B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B2, B3, B4, B5, B8

World Wide (WW model)
LTE = B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41 (TDD), B42 (TDD), B43 (TDD), B46 (TDD), B48 (TDD), B66
WCDMA = B1, B2, B3, B4, B5, B6, B8, B9, B19

Data Rates – LTE

Asia-Pacific (APAC model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

Europe & North America (EUNA model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

World Wide (WW model)
Downlink:
Cat 12: 600 Mbps
Cat 9: 450 Mbps
Uplink:
Cat 13: 150 Mbps

Physical Ports & System

Connectors

10/100/1000T: 2x ports RJ 45 with Auto MDI/MDI-X function n (2 x10/100/1000T; 8 pin X coded-M12
model) (one port PD)
(one port PD)
USB x 1
RS-232 connector: 1 x RJ 45
Serial connector : 2 or 4 DB9
SIM card slots : 4(2L) or 2(1L)
2L model
SMA connector for LTE: 4 (female)
SMA connector for GPS: 2 (female)
1L model
SMA connector for LTE: 2 (female)
SMA connector for GPS: 1 (female)
Power & P-Fail connector: 1 x 6-pole terminal block
(M12, 5-pole A-coded, Male – M12 model)

Serial Baud Rate

1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/RS485

Serial Data Bits

5, 6, 7, 8

Serial Parity

odd, even, none, mark, space

Serial Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+,Tx-, Rx+, Rx-,GND

RS-485 (2-wire)

Data+, Data-,GND

Isolation protection

Input power to I/O: 1.5KV isolation
Input power to Ethernet 1.5KV isolation

LED Indicators

Power & System indicator

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Storage(Green), Serial1/Serial2(Green)

10/100/1000Base-T(X) port indicator

Link/Activity (Green), Speed (1000T: Yellow; 10/100TX: off)

SIM

Green for Link/Act

GPS

Green for Link/Act

WLAN LEDs

Link /ACT : Green

Fault

Red: Ethernet link down or power down

Fault Contact

Relay

Relay output to carry capacity of 1A at 24VDC

Power

Input power

Dual DC input, 9~56VDC (24V model)
Dual DC input, 9~36VDC (24V-IGN model)

Power consumption (Typ.)

20 Watts

Physical Characteristic

Enclosure

IP 30 Metal case
IP43 Metal case (M12 model)

Dimension

74 (W) x 114 (D) x 152 (H) mm(24V model)

Weight

900g

Environmental

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Temperature

-40°C ~ 65°C (-40°F ~ 149°F)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals

Safety

EN 62368-1

EMC

FCC Part 15B Class A,
ICES-003 ISSUE7,
EN 55032: 2015,
EN 55024: 2015
IEC 61000-6-2,
IEC 61000-6-4
BS EN55032,
BS EN55024

EMS

IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF)
BS EN61000-4-2,
BS EN61000-4-3,
BS EN61000-4-4,
BS EN61000-4-5,
BS EN61000-4-6,
BS EN61000-4-8,

Radio Frequency

EN 301 489-1,
EN 301 489-17,
EN 301 489-19,
EN 301 489-52,
EN 301 908-1※,
EN 303 413,
EN 62311

Stability Testing

IEC 60068-2-27 (Shock)
IEC 60068-2-31 (Shock)
IEC 60068-2-64 (Vibration)
IEC 60068-2-80 (Vibration)

Vehicle Certificate
(24V model)

E13 marking** (UN ECE R10)

Vehicle Compliance
(24V model)

UN ECE R118, ITxPT design**
(ITxPT design is IGN model only)

Railway Compliance
(Except -IGN model)

EN50155
EN61373
EN45545
IEC 60571

MTBF

1,161,227hrs (standards: IEC 62380)

Warranty

5 years

Software

IPv6/4

Present

Login Security

Supports IEEE802.1x Authentication/RADIUS

Access Security

HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)

Protocol

PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter /  TCP/UDP port name),VRRP, DDNS

Management

SNMP v1,v2c,v3/ Web/Telnet/CLI

Security

SSH/SSL/HTTPS

Timer

Built-in Real Time Clock to keep track of time always(RTC)

Discovery

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

SNMP trap

Device cold / warm start
Port link up / link down
DI / DO high / low

Graphic signal display

Graphic LTE signal strength & TX / RX rate display

Remote Web control

To reboot or get status of router by WebUI

Diagnostic

Support Ping and ARP table

Maintenance

Firmware upgradeable through TFTP/HTTP

Configuration backup & restore

Supports text configuration file for quick system installation
USB port to upload/download configuration by USB dongle**

Software - Load Balancing

5 schemes for multiple WAN(client mode)

Pack

Algorithm

Description

Basic



Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.

Priority

Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights

Custom Route

Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.
*Future Release
**Optional

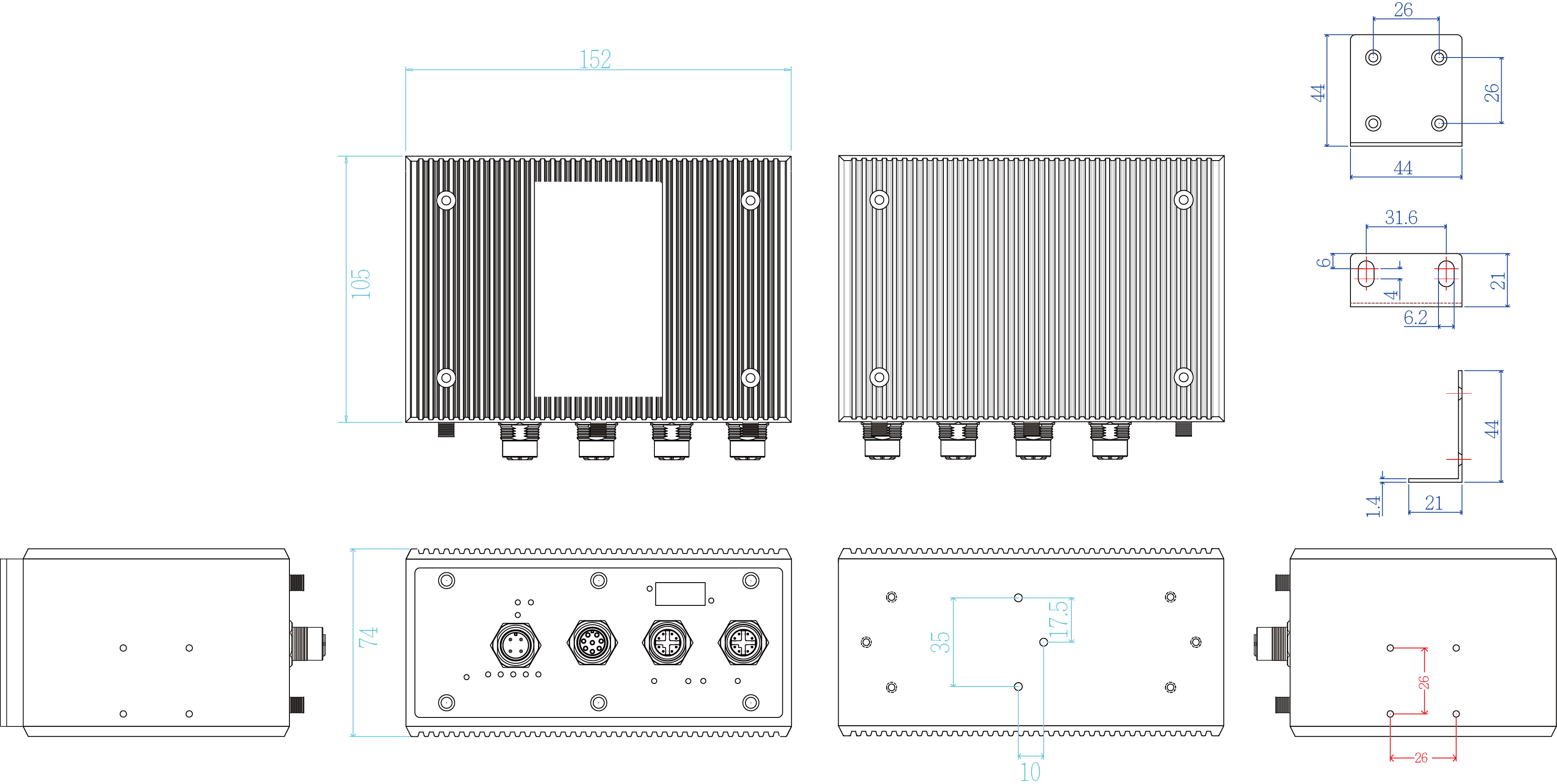

DIMENSION

24V model

M12 model

ORDERING INFORMATION

M12 models are available with –M12 model names (-2S/-4S/-2SA/-2SB/-2S2SA/-2S2SB for RJ45 models only) For 24V model are all available with –IGN model name (w/ ignition; dual 9~36VDC)

P/N Model name Description
8611-101 IMR-3002-2L-2S-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-102 IMR-3002-2L-2S-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-103 IMR-3002-2L-2S-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C
8611-1011 IMR-3002-2L-2SA-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-1012 IMR-3002-2L-2SB-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-1021 IMR-3002-2L-2SA-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-1022 IMR-3002-2L-2SB-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-1031 IMR-3002-2L-2SA-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C
8611-1032 IMR-3002-2L-2SB-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C
8611-107 IMR-3002-1L-2S-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-104 IMR-3002-1L-2S-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-105 IMR-3002-1L-2S-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C
8611-1071 IMR-3002-1L-2SA-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-1072 IMR-3002-1L-2SB-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); EU and US band ; dual 9~56VDC; -40°C~65°C
8611-1041 IMR-3002-1L-2SA-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-1042 IMR-3002-1L-2SB-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); worldwide band ; dual 9~56VDC; -40°C~65°C
8611-1051 IMR-3002-1L-2SA-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C
8611-1052 IMR-3002-1L-2SB-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 2 port Gigabit Ethernet (incl. 1PD); APAC band ; dual 9~56VDC; -40°C~65°C


EMMC Flash Storage

P/N Description
8850-113 8G
8850-114 16G
8850-115 32G


OPTIONAL ACCESSORIES - Management System

P/N Model name Description
9000-121 InstaAir Cloud Based Fleet Management System for Routers ( View Datasheet )


OPTIONAL ACCESSORIES - Cellular Antenna

Model name Description
ANT11000041
 2G/3G/4G dipole antenna, 791-960/1710~2170/2500~2700MHz, 3dBi, SMA plug, EU
ANT11000042
 2G/3G/4G dipole antenna, 704-960/1710~2170MHz, 3dBi, SMA plug, US
ANT11000044
 2G/3G/4G dipole antenna, 704-960/1710~2690MHz, 1.6dBi, SMA plug, EU
ANT11000045
 2G/3G/4G dipole antenna, 698-960/1710~2690MHZ, 3dBi, SMA plug, US


OPTIONAL ACCESSORIES - GPS Antenna

Model name Description
ANT12000001
 SMA GPS antenna, 28dB, 300m


OPTIONAL ACCESSORIES - Antenna Base

Model name Description
ADA11000053
 Magnetic antenna base for 3G/4G, RP SMA Jack Base, Length : 1M

About Lantech

IRIS-ISO-and-ITxPT-LOGO
Lantech is an IRIS / IEC62443-4-1 certified company as well as a member of ITxPT. Lantech designs and produces a complete family of industrial networking products. For decades, Lantech has provided professional and powerful industrial networking solutions globally. Learn More

Taiwan Quality

Lantech-provides-Taiwan-quality-products-and-proudly-provide-5-years-warranty-to-our-industrial-products Lantech is dedicated to providing the best quality and service to our customers. We proudly provide 5 years warranty to our industrial products. Learn More

Contact Us

7F, No.33, Sec.1, Tiding Blvd.,
Neihu District, Taipei, Taiwan, 114066 (or 11494)
Phone: +886-2-2790-2589 │ Fax: +886-2-2790-2516
Sales/Support Inquiry Form

2020 © Lantech Communications Global, Inc. ALL Rights Reserved. Privacy Policy | Terms of Service

Logo-of-Lantech
