16 10/100TX L2+ PoE at/af Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring

  • Support IEEE802.3at/af up to 30W per port
  • PoE management incl. Detection and Scheduling
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP ring
  • Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
  • User friendly UI, including auto topology drawing and Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; Port based DHCP distribution, DHCP Snooping; Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ, Protocol based VLAN ; IPv4 Subnet based VLAN
  • Optional Environmental Monitoring for temp., voltage, total PoE load and current. (-M model)
  • E-marking certificate for vehicle application (24V model)


PoE 802.3at/af 30W ITU G.8032 Ring Environmental Monitoring FCC CE WEEE RoHS2


Datasheet   Hardware Manual
For latest firmware and web UI user manual, please contact us.

OVERVIEW

Lantech IPES-3016 is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX w/16 PoE 802.3af/at Injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+*, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.


Up to 16 PoE at/af ports w/advanced PoE management
Compliant with 802.3af/at standard, the Lantech IPES-3016 is able to feed each PoE port up to 30 Watts providing the connected PD devices. Lantech IPES-3016 supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hang then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.


Miss-wiring avoidance, Repowered auto ring restore, Loop protection
The IPES-3016 also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPES-3016 is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.


DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch), it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Optional IPv6 address resolution for DHCP service can be supported.


Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.


User friendly UI, Auto topology drawing, complete CLI
The user friendly UI, innovative auto topology drawing and topology demo makes IPES-3016 much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.


Enhanced G.8032 ring, 16 MSTI MSTP; Optional MRP ring
Lantech IPES-3016 features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topology IPES that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 16 MSTI. Optional MRP (Media Redundancy Protocol) can be supported for industrial automation networks.


Editable configuration file
The configuration file of Lantech IPES-3016 can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.


QoS by VLAN for legacy device
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.


QinQ, QoS and GVRP supported
It supports the QinQ, QoS and GVRP for large VLAN segmentation.


802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.


Event log & message; 2DI / 2DO
In case of event, the IPES-3016 is able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.


Optional environmental monitoring for switch inside information (-M model)
The environmental monitoring can detect switch overall temperature, voltage, total PoE load and current where can send the SNMP traps, and email alert when abnormal.


Wide range dual DC powered input with 24V/48V model, High ESD protection
The Lantech IPES-3016 is designed with dual power supply at 48VDC (48V model) or 9~36VDC input (24V model). The IPES-3016 also provides ±2000V EFT and ±4000 VDC (Contact) / ±8000 VDC (Air) Ethernet protection, which can reduce unstable situation caused by power line and Ethernet.


E-marking certificate
The E-marking certificate (24V model) makes it the most suitable PoE switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 24V but has demand of IP surveillance or VoIP applications.


Industrial hardened design for extended temperature operation
Lantech IPES-3016 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.


The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°.


*Future Release
**Optional
***Optional DDM SFP required

FEATURES

  • 16 10/100TX w/16 PoE 802.3af/at Injectors (Total 16 Ports Switch)
  • Embedded 16 PoE Injectors IEEE802.3af/at function to feed power up to 30W per port for active operation; 48V input for PoE budget 240W; 24V input for PoE budget 100W
  • PoE management including PoE detection and scheduling for PD (power devices)
  • E-marking certificate for vehicle application (24V model)
  • Back-plane (Switching Fabric): 3.2Gbps
  • 16K MAC address table
  • 10KB Jumbo frame
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms < 256 switches
    • Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Cover multicast and data packets protection
  • Provides EFT protection ±2000 VDC for power line.
  • Supports ±4000 VDC (Contact) and ±8000 VDC (Air) Ethernet ESD protection
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with 16 MSTI
  • 4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ, QoS
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server; Port based DHCP server; DHCP Option 66; DHCP Snooping; basic IPv6 DHCP server
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Miss-wiring avoidance
    • LED indicator
  • Repowered auto ring restore
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP /HTTP firmware upgrade
  • System Event Log and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/INGRESS/EGRESS ACL L2/L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • TACACS+*
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • IGMP router port to assign query in ring for reversed multicast video flow
  • Multicast VLAN registration* for metro video
  • IGMPv1,v2,v3 with Query mode for multimedia, GMRP**
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch CPU is found dead
  • Environmental monitoring** for system input voltage, current , total PoE load and ambient temperature.(-M model)
  • Supports 2DI / 2DO (Digital Input/Digital Output)
  • Configuration backup and restoration
    • Supports editable configuration file for system quick installation
  • IP30 metal housing with DIN rail and Wall-mount** design
  • Auto Provision to verify switch firmware with the latest or certain version
*Future Release
**Optional
***Optional DDM SFP required

SPECIFICATIONS

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 3.2Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

Packet Buffer

8Mbits

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 16 x ports RJ-45 PoE with Auto MDI/MDI-X function
RS-232 connector: RJ-45 type
Power connector: 1 x 6-pole terminal block
DIDO : 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green),
Power 2 (Green), FAULT (Red)
Ethernet port: Link/Activity (Green),
Speed (Green);
R.M. indicator (Green)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

44~56VDC(48V model); 9~36VDC (24V model)

PoE Budget

240W at 48V input(48V model)
(50-56VDC input is recommended for 802.3at 30W applications)
100W at 24V input(24V model)
Higher PoE budget can be applied upon request. **

PoE pin assignment

RJ-45 port # 1~ # 16 support IEEE 802.3at/af End-point. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

Power Consumption

10W

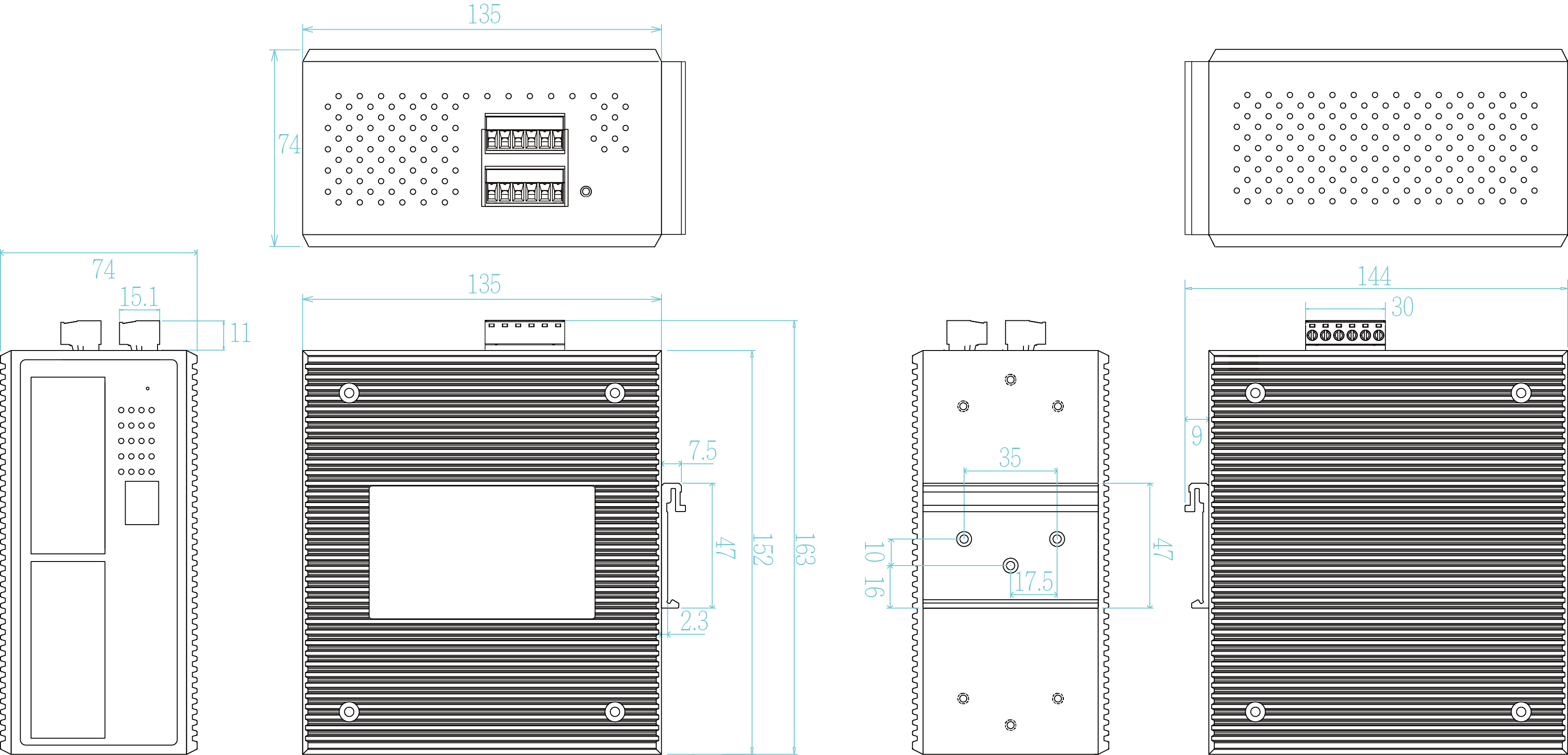

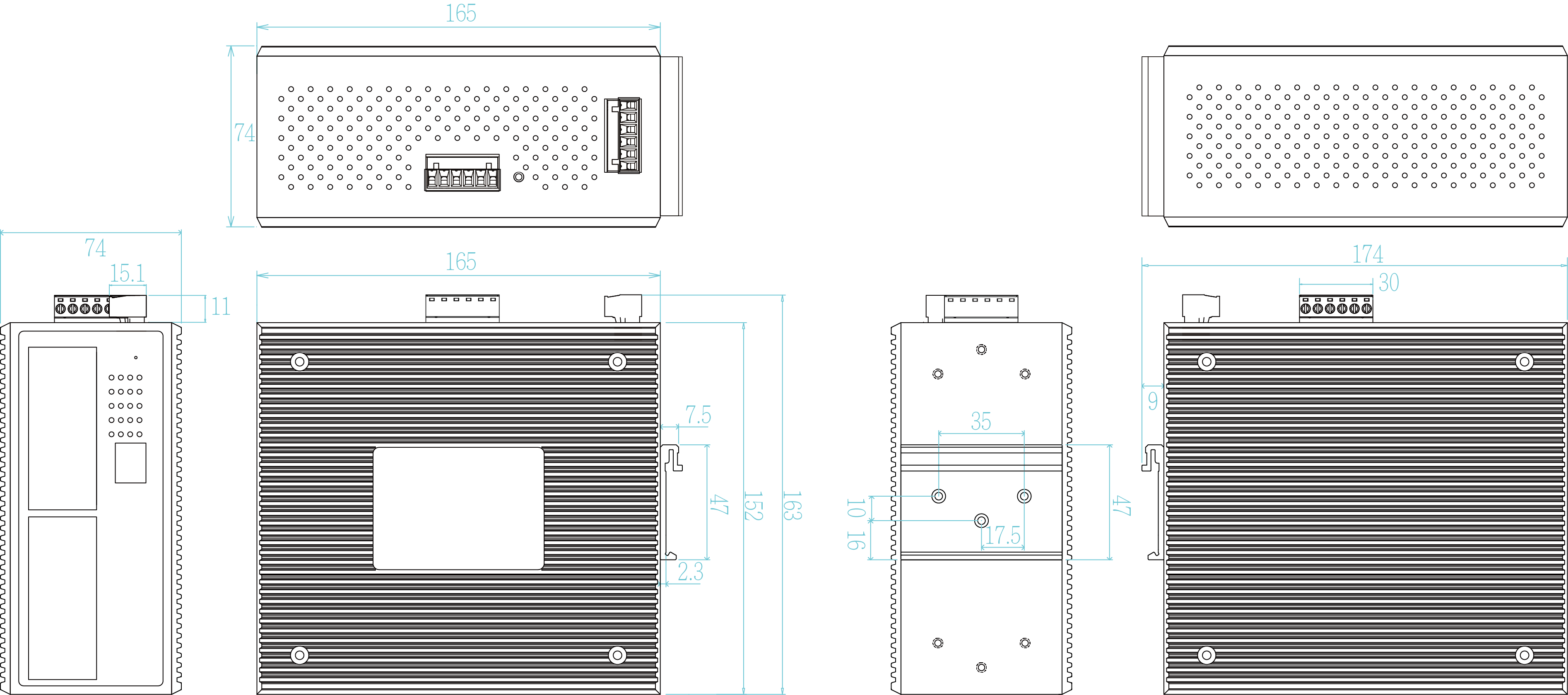

Case Dimension

Metal case. IP-30,
74 (W) x 135 (D) x 152 (H) mm (48V model)
74 (W) x 165 (D) x 152 (H) mm (24V model)

Weight

1000g (48V model)
1250g (24V model)

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

FCC Class A,
CE EN55032, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2

MTBF

615,724 hours (48V model)
548,636 hours (24V model)
(standards: IEC62380)

Vehicle certificate

E13 marking (24V model)

Warranty

5 years

Software Specifications

Management

SNMP v1 v2c, v3/ Web/Telnet/CLI

SNMP MIB

MIB
MIBII
SNMP MIB
Bridge MIB
IF MIB
RMON MIB
Private MIB

ITU G.8032

Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode)
Support various ring/chain topologies
Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring
Enhanced G.8032 ring configuration with ease. Protect multicast & unicast data

PoE Management

PoE Detection to check if PD is hang up then restart the PD

Per Port PoE Status

On/ Off, voltage, current, watts, temperature

User friendly UI

  1. Auto topology drawing
  2. Topology demo
  3. Auto configuration for G.8032(auto mode) for single ring
  4. Complete CLI for professional setting

Port Trunk with LACP

LACP Port Trunk: 8 Trunk groups

LLDP

Supports LLDP to allow switch to advise its identification and capability on the LAN

CDP

Cisco Discovery Protocol for topology mapping

Environmental Monitoring**

System status for input voltage, current, total PoE load and ambient temperature to be shown in GUI and sent alerting if any abnormal status(-M model).

VLAN

Port Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.)
GVRP**, QinQ, Protocol based VLAN; IPv4/IPv6 Subnet based VLAN

IPv6/4

Present

Spanning Tree

Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree

Quality of Service

The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

Support IEEE802.1p class of service, per port provides 8 priority queues

QoS by VLAN

Tagged QoS by VLAN for all devices in the network

IP Security

Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.

Login Security

Supports IEEE802.1X Authentication/RADIUS

Port Mirror

Support 3 mirroring types: “RX, TX and Both packet”

Network Security

Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Management access control with priority
Ingress/Egress ACL L2/L3
SSL/ SSH for Management
HTTPS for secure access to the web interface
TACACS+* for Authentication

IGMP

Support IGMP snooping v1,v2,v3; 1024 multicast groups; IGMP router port ; IGMP query; GMRP**

Static MAC-Port bridge

Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application

Bandwidth Control

Support ingress packet filter and egress packet limit.
The egress rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.

Flow Control

Supports Flow Control for Full-duplex and Back Pressure for Half-duplex

System Log

Supports System log record and remote system log server

Protection

  1. Miss-wiring avoidance
  2. Repowered auto ring restore
  3. Loop protection

SNMP Trap

Up to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change(ITU ring)
  6. Power failure
  7. Environmental abnormal**(-M model )

DHCP

Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Snooping; DHCP Option 66; IPv6 address resolution for DHCP server

Mac based DHCP Server

Assign IP address by Mac that can include dumb switch in DHCP network

DNS

Provide DNS client feature and support Primary and Secondary DNS server.

SNTP

Supports SNTP to synchronize system clock in Internet

Firmware Update

Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade

Configuration
upload and download

Supports text configuration file for system quick installation; Support factory reset button to restore all settings back to factory default.

Auto Provision

To verify switch firmware with the latest or certain version

*Future Release
**Optional

DIMENSION

48V model

24V model

ORDERING INFORMATION

P/N Model name Description
8351-032 IPES-3016-48V 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; 44~56VDC power input
8351-0321 IPES-3016-48V-E 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; 44~56VDC power input
8351-0322 IPES-3016-48V-M 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental monitoring; 44~56VDC power input
8351-0323 IPES-3016-48V-M-E 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental monitoring; 44~56VDC power input
8351-033
IPES-3016-24V 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; 9~36VDC power input
8351-0331
IPES-3016-24V-E 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; 9~36VDC power input
8351-0332
IPES-3016-24V-M 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental monitoring; 9~36VDC power input
8351-0333
IPES-3016-24V-M-E 16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental monitoring; 9~36VDC power input


OPTIONAL ACCESSORIES - DIN Rail Power

Model name Description
NDR-480 Series 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)


OPTIONAL ACCESSORIES - Wall Mount Bracket

Model name Description
MBAK19003 Wall mount bracket for 74(W) x 105 (D) x 152 (H) mm Industrial switches
