I(P)WAP-3004│Industrial Multifunction 4G+WiFi Routers│Lantech®

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports + 4 Gigabit Ethernet (PoE) Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage; 24V input

Up to 2 concurrent WIFI 11ac and redundancy(2AC model)

PoE model built-in 4 Gigabit PoE at/af with budget 80W@12V/24V/48V

Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model)

WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz

Support WIFI 802.11e traffic prioritization and WMM

MIMO technology 3T3R up to 6 antenna(2AC); SMA type external antenna

Support Client-base roaming

Supports AP/ Bridge/ Client/ MESH modes

Support 802.11s Wireless Mesh Network

Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES)

VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE

Load Balancing built-in 5 mechanisms

Optional EMMC Flash storage on-board**

Support NAT and Firewall

Support Modbus gateway on serial ports

Support 2 RS422/RS485 ports or 2x RS232 ports

Input voltage selection 9~56VDC (24V model)

Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; Wi-Fi graphic signal strength

Editable login page of captive portal for hot-spot application

USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware

Datasheet Hardware Manual
For latest firmware and web UI user manual, please contact us.

OVERVIEW

Lantech I(P)WAP-3004 series is a next generation industrial multi-function VPN router w/up to 2x 802.11ac Wi-Fi + u 4x Gigabit Ethernet (PoE) switch + 2 WANs + 2 serial ports** that supports advanced function of VPN, Load-balancing, Protocol gateway(Modbus), EMMC Flash Storage**, and WiFi roaming. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.

Support AP/Bridge/Client mode, Mesh roaming
I(P)WAP-3004 supports AP/Bridge/Client mode for different applications.

It also supports client-base roaming to swap between the APs in a network.

Built-in Wireless mesh network（WMN）
I(P)WAP-3004 supports Mesh networks composed of different nodes. The set of SSIDs allow the wireless client to roam freely without the need for complicated account management. With Mesh protocol, it can provide a reliable, scalable, stable and seamless network topology.

IEEE 802.11ac dual band radio up to 2.6Gbps bandwidth
With IEEE 802.11ac capability, I(P)WAP-3004 can operate either 5GHz or 2.4GHz bands, offering the maximum speed of 2.6Gbps bandwidth (1.3Gbps per 1AC). It is also compatible with 802.11g/n that can work with 2.4GHz for longer range transmission.

The WiFi 11ac supports AP/BRIDGE/AP Client modes can be diverse for most of wireless application. Working with Load-balancing “Priority” mode, the AP client can enable router to transmit on WiFi with first priority.

MIMO technology with 3T3R and SMA type connectors
Lantech I(P)WAP-3004 series adapts MIMO technology with smart antenna transmission and reception for 3T3R. With six external detachable omni connectors and optional antennas, I(P)WAP-3004 can have better Wi-Fi coverage.

Wireless WMM QoS
I(P)WAP-3004 supports 802.11e standard which defines a set of Quality of Service for wireless LAN applications as well as WMM (WIFI multimedia)

Advanced security & 16 SSIDs
The security support standards including 64/128bits WEP, WPA/WPA2 PSK (TKIP, AES), 802.1x ensures the best security and active defense against security treads. Lantech I(P)WAP-3004 support up to 16 SSIDs, each SSID has its independent security and encryption.

Load Balancing with 5 mechanisms for multi-WANs
I(P)WAP-3004 supports Load Balancing for WAN connections. There are five schemes for Load Balancing function:

Pack	Algorithm	Description
Basic	Fixed	All traffic will be distributed to a single WAN.
	Failover	Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
	Priority	Select the active WAN according to priority.
	Weighted Round-Robin	Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
	Custom Route	Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.

2 port serial connection, Modbus gateway
It builds in 2 port serial connection for RS232, RS422, RS485.

The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.

Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.

VPN and firewall
Besides traditional VPN peer to peer tunneling, I(P)WAP-3004 support latest Multi-Site VPN function that is an efficient way for mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe.

It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE, and NAT for various VPN applications.

The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number.

Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Lantech router series supports two routing methods: static routing and dynamic routing. Dynamic routing makes use of RIPv2, OSPF, EIGRP and BGP. The user can either choose one routing method to establish the routing table.

DIDO for alarm & email notice; Event log; Remote Web control
2 sets of DIDO function can support additional high/low physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the router was moved or stolen. In case of events, the I(P)WAP-3004 will immediately send email and trap.

When the router is at remote area with limited access, Web control can help to get router status or remotely reboot.

Wide range input voltage from 9V-56VDC; PoE model built-in 4 port PoE at/af with 80W@12V /24V/48V
The I(P)WAP-3004 is able to work from 9VDC to 56VDC and PoE model built-in PoE at/af with PoE budget 80W@12V /24V/48V that is particular good for vehicle, rail train, depot etc. application.

Environmental monitoring for inside router info& alerting; Graphic WI-FI signal strength
The built-in environmental monitoring can detect router ambient temperature, voltage, current and total PoE load where can send the SNMP traps Syslog, and email alert when abnormal.

The graphic WI-FI signal strength shows connection status at a glance.

USB port for back up, restore configuration and upgrade firmware; Dual image firmware
The built-in USB port can upload/download the firmware through USB dongle for router replacement

It supports dual-image firmware to choose which one to start.

Dual image firmware
It supports dual-image firmware to choose which one to start.

Editable login page of captive portal
The I(P)WAP-3004 supports editable captive portal function that allows administrator to force end-users redirect to authentication page.

Ruggedized industrial design and FCC, CE & E-marking** certificate
The I(P)WAP-3004 is designed to meet with industrial network environment with IP 30 housing. It passed tests under extensive Industrial EMI and environmental vibration and shocks standards.

With CE & FCC radio certification for WIFI and E-marking certificate, the I(P)WAP-3004 is best for outdoor community, vehicle, process control automation etc. For more usage flexibilities, I(P)WAP-3004 supports wide operating temperature from -20°C to 70°C & -40°C to 70°C(-E model)

Built-in Managed Switch Function
Managed switch function is built-in and provides various L2+ functions for network aggregation deployment. It delivers ports and PoE management, VLAN, QoS, multicast, redundant ring, and security functions.

*Future Release
**Optional

FEATURES

High Speed Air Connectivity: WLAN interface support up to 2.6Gbps link speed(2AC) or 1.3Gbps (1AC)
Built-in 4 Gigabit switch + 2 WAN port
PoE model with 80W@12V /80W@24V&48V PoE budget
EMMC-FLASH storage**
Dual band 2.4G and 5GHz with 802.11ac/a/b/g/n
Support 2.4Ghz operating within the following frequency bands:
- 2.412~2.472 GHz
Support 5Ghz operating within the following frequency bands:
- 5.180GHz~5.825GHz
MIMO smart antenna technology with 3T3R
6 SMA type connectors for WiFi
Output power : <24dBM
Transmit power adjustment
VAP (virtual access point) support up to 16 SSIDs
Support AP/Bridge/Client/Mesh mode
Support Client-base roaming
Support 802.11s Wireless Mesh Network
IEEE 802.11h DFS and automatic TPC
Traffic control for each SSID
Band preference for same SSID services on dual band
Highly Security Capability: WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES)
HTTP/HTTPS/Telnet/SSH & Administration access
Support IPv6 & IPv4 protocol
Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Radius Authentication, EAP-TLS, EAP-TTLS, PEAP; SSID broadcast disable supported
Multiple channel bandwidths of 20MHz and 40MHz for 2.4G.
Multiple channel bandwidths of 20MHz, 40MHz and 80MHz for 5G only.
Wi-Fi Multimedia (WMM) and 802.11e traffic prioritization
Support Multi-Site VPN for mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE and NAT for secured network connection
The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number.
Support SNMP v1/v2c/v3
NAT/ DMZ/ Port Forwarding
Load Balancing supports 5 mechanisms between multiple WANs

Pack	Algorithm	Description
Basic	Fixed	All traffic will be distributed to a single WAN.
	Failover	Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
	Priority	Select the active WAN according to priority.
	Weighted Round-Robin	Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
	Custom Route	Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.

Built-in 2 x serial ports**(RS232/RS422/RS485)
Supports 2DI / 2DO (Digital Input / Output)
Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP for serial ports
Event alerting by Syslog, SNMP Trap, Email, Relay ; Permanent local log rotation / Maxi 1K records
Remote Web control to get status or re-boot by Web
Graphic WIFI signal strength
Support SNTP to synchronize system clock
Support LLDP discovery protocol
Support DHCP Server and Client
Built-in environmental monitoring for system input voltage, current and ambient temperature; Able to set alert when abnormal
Dual image firmware to choose which to start
Firmware upgradeable through TFTP/HTTP
Configuration backup and restoration
- Supports text configuration file for system quick installation
- USB port to upload/download firmware by USB dongle
Reset button for factory default mode
Support editable captive portal login page
IP 30 housing for industrial environment
DIN-Rail and Wall-mount** installation
Operation temperature -20~70C or -40~70C(-E model)

*Future Release
**Optional

SPECIFICATIONS

WLAN Interface

Radio Frequency Type	DSSS, OFDM
Wireless Standard	IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Wireless bandwidth	5GHz: Up to 1300Mbps 2.4GHz: Up to 450Mbps
Modulation	802.11b: DSSS 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Operating Frequency	IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz
Transmission Rate	IEEE802.11ac: up to 1300Mbps IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps IEEE802.11n: up to 450Mbps
IEEE 802.11b/g/n(2.4Gbps)	Output Power Tx +/- 2dB(per chain) 18dBm @ 1~11Mbps 18dBm @ 6~54Mbps 20/20dBm @ MCS0~MCS7 (HT20/40) Receiver Sensitivity Rx +/- 2dB ≦-95dBm @ 1~11Mbps ≦-92dBm @ 6~18Mbps ≦-88dBm @ 24Mbps ≦-85dBm @ 36Mbps ≦-81dBm @ 48Mbps ≦-80dBm @ 54Mbps ≦-94dBm @ MCS0 (HT20/40) ≦-76dBm @ MCS7 (HT20/40)
IEEE 802.11a/n/ac(5Gbps)	Output Power Tx +/- 2dB(per chain) 20dBm @ 6~24Mbps 16dBm @ 36~54Mbps 19/18dBm @ MCS0 (HT20/40) 16/16dBm @ MCS7 (HT20/40) 19/18/18dBm @ MCS0 (VHT20/40/80) 13/13/13dBm @ MCS8 (VHT20/40/80) 13/13dBm @ MCS9 (VHT40/80) Receiver Sensitivity Rx +/- 2dB ≦-92dBm @ 6~18Mbps ≦-86dBm @ 24Mbps ≦-84dBm @ 36Mbps ≦-81dBm @ 48Mbps ≦-80dBm @ 54Mbps ≦-93dBm @ MCS0 (HT20/40) ≦-71dBm/≦-80dBm @ MCS7 (HT20/40) ≦-90dBm @ MCS0 (VHT20/40/80) ≦-69dBm @ MCS8 (VHT20/40/80) ≦-66dBm @ MCS9 (VHT40/80)
Encryption Security	WEP : (64-bit ,128-bit key supported) WPA /WPA2 : IEEE802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) EAP,MD5,EAP,TLS,EAP,TTLS,EAP PEAP
Wireless Security	SSID broadcast disable

Physical Ports & System

Connectors	10/100/1000T: 6x ports RJ 45 (PoE model incl 4 PoE ports) USB x 1 RS-232 connector: 1 x RJ 45 Serial connector : 2 DB9 RP-SMA connector for Wi-Fi 2AC: 6 (female) RP-SMA connector for Wi-Fi 1AC: 3 (female) Power & P-Fail connector: 1 x 6-pole terminal block DIDO : 1 x 5-pole terminal block
Serial Baud Rate	1000Kbps high data rate, 250kbps normal for RS232 ; 20Mbps high data rate, 250kbps normal for RS422/RS485
Serial Data Bits	5, 6, 7, 8
Serial Parity	odd, even, none, mark, space
Serial Stop Bits	1, 1.5, 2
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+,Tx-, Rx+, Rx-,GND
RS-485 (2-wire)	Data+, Data-,GND
Isolation protection	Input power to I/O: 1.5KV isolation Input power to Ethernet 1.5KV isolation Input power to PoE port 1.5KV isolation (PoE model)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA

LED Indicators

System & Power	Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), Storage(Green), Serial1/Serial2(Green)
10/100/1000Base-T(X) port indicator	Link/Activity (Green), Speed (1000T: Yellow; 10/100TX: off), PoE (Green, PoE model)
Fault	Red: Ethernet link down or power down

Fault Contact

Relay	Relay output to carry capacity of 1A at 24VDC

Power

Input power	Dual DC input, 9~56VDC (24V model)
PoE Budget (PoE model)	80W@12V/24V/48V
Power consumption (Typ.)	30.5 Watts

Physical Characteristic

Enclosure	IP 30 Metal case

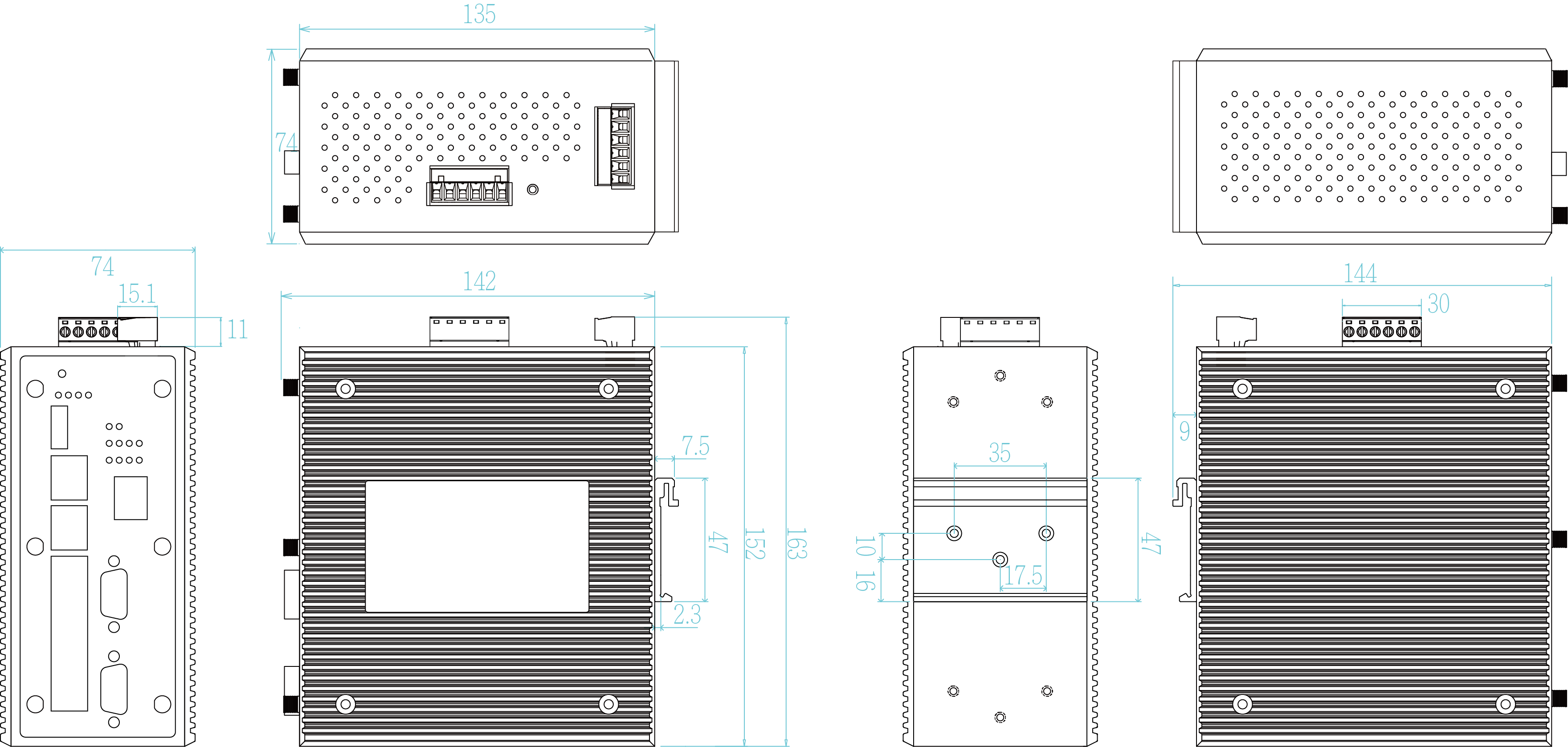

Dimension	74 (W) x 142 (D) x 152 (H) mm
Weight	1000g

Environmental

Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Operating Temperature	-20°C ~ 70°C (-4°F ~ 158°F) -40°C ~ 70°C (-40°F ~ 158°F) for E model
Operating Humidity	5% to 95% Non-condensing

Regulatory Approvals

Safety	EN 62368
EMC	FCC Part 15B Class A, EN 55032: 2015, EN 55024: 2010 IEC 61000-6-2, IEC 61000-6-4
EMS	IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000-4-8 (PFMF)
Radio Frequency	EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 301 489-52 EN 302 502, EN 301 893, EN 300 328, EN 62311
Vehicle certificate	E13**
MTBF	NA
Warranty	5 years

Software

IPv6/4	Present
Operation Mode	AP/Bridge/Client/MESH mode
Roaming	Client-base roaming
MESH	Support 802.1s
WMM	WIFI multimedia and 802.11e traffic prioritization
VPN	Multi-site VPN, Open VPN, L2TP, IPSec
Firewall	DDoS, IP address filter / Mac address filter / TCP/UDP port number
Security	WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES)/SSH/SSL/HTTPS
Authentication	Radius Authentication, EAP-TLS, EAP-TTLS ,PEAP; SSID broadcast disable supported
SSID	16 sets
Login Security	Supports IEEE802.1x Authentication/RADIUS
Access Security	HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)
Routing	Static route / RIPv2 / OSPF / BGP / EIGRP
Protocol	PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter / TCP/UDP port name ),VRRP, DDNS
Protocol Gateway	Modbus on serial ports
Management	SNMP v1,v2c,v3/ Web/Telnet/CLI
Environmental Monitoring	System status for input voltage, current , ambient temperature to be shown in GUI and sent alerting if any abnormal status
Graphic signal display	Graphic WIFI signal strength
Timer	Built-in Real Time Clock to keep track of time always(RTC)
Discovery	IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
SNMP trap	Device cold / warm start Port link up / link down DI/DO high / low
Remote Web control	To reboot router by WebUI
Captive portal	Editable captive portal login page
Maintenance	Firmware upgradeable through TFTP/HTTP
Configuration backup & restore	Supports text configuration file for system quick installation USB port to upload/download firmware by USB dongle

Software - Load Balancing

5 schemes for multiple WAN(client mode)
Pack	Algorithm	Description
Basic	Fixed	All traffic will be distributed to a single WAN.
	Failover	Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.
	Priority	Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.
	Weighted Round-Robin	Evenly distribute the traffic over all working WAN links in circular order according to the specified weights
	Custom Route	Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.

*Future Release
**Optional

RF PERFORMANCE TABLE

	Data Rate	TX Power (per chain)	TX Power (3 chains)	Tolerance	RX Specifications Sensitivity	Tolerance
2.4GHz 802.11b	1Mbps	20dBm	25dBm	±2dB	-95dBm	±2dB
	2Mbps	20dBm	25dBm	±2dB	-94dBm	±2dB
	5.5Mbps	20dBm	25dBm	±2dB	-92dBm	±2dB
	11Mbps	20dBm	25dBm	±2dB	-90dBm	±2dB
2.4GHz 802.11g	6Mbps	21dBm	26dBm	±2dB	-94dBm	±2dB
	9Mbps	21dBm	26dBm	±2dB	-93dBm	±2dB
	12Mbps	21dBm	26dBm	±2dB	-93dBm	±2dB
	18Mbps	21dBm	26dBm	±2dB	-90dBm	±2dB
	24Mbps	21dBm	26dBm	±2dB	-90dBm	±2dB
	36Mbps	20dBm	25dBm	±2dB	-85dBm	±2dB
	48Mbps	19dBm	24dBm	±2dB	-82dBm	±2dB
	54Mbps	18dBm	23dBm	±2dB	-80dBm	±2dB
2.4GHz 802.11n HT20	MCS 0	21dBm	26dBm	±2dB	-94dBm	±2dB
	MCS 1	21dBm	26dBm	±2dB	-92dBm	±2dB
	MCS 2	21dBm	26dBm	±2dB	-89dBm	±2dB
	MCS 3	20dBm	25dBm	±2dB	-84dBm	±2dB
	MCS 4	20dBm	25dBm	±2dB	-83dBm	±2dB
	MCS 5	20dBm	25dBm	±2dB	-80dBm	±2dB
	MCS 6	18dBm	23dBm	±2dB	-79dBm	±2dB
	MCS 7	16dBm	21dBm	±2dB	-77dBm	±2dB
2.4GHz 802.11n HT40	MCS 0	20dBm	25dBm	±2dB	-93dBm	±2dB
	MCS 1	20dBm	25dBm	±2dB	-91dBm	±2dB
	MCS 2	20dBm	25dBm	±2dB	-89dBm	±2dB
	MCS 3	19dBm	24dBm	±2dB	-84dBm	±2dB
	MCS 4	19dBm	24dBm	±2dB	-82dBm	±2dB
	MCS 5	19dBm	24dBm	±2dB	-80dBm	±2dB
	MCS 6	18dBm	23dBm	±2dB	-79dBm	±2dB
	MCS 7	16dBm	21dBm	±2dB	-75dBm	±2dB

	Data Rate	TX Power (per chain)	TX Power (3 chains)	Tolerance	RX Specifications Sensitivity	Tolerance
5GHz 802.11a	6Mbps	20dBm	25dBm	±2dB	-94dBm	±2dB
	9Mbps	20dBm	25dBm	±2dB	-94dBm	±2dB
	12Mbps	20dBm	25dBm	±2dB	-92dBm	±2dB
	18Mbps	20dBm	25dBm	±2dB	-91dBm	±2dB
	24Mbps	20dBm	25dBm	±2dB	-90dBm	±2dB
	36Mbps	18dBm	23dBm	±2dB	-86dBm	±2dB
	48Mbps	16dBm	21dBm	±2dB	-83dBm	±2dB
	54Mbps	15dBm	20dBm	±2dB	-80dBm	±2dB
5GHz 802.11n/ac VHT20	MCS 0	19dBm	24dBm	±2dB	-93dBm	±2dB
	MCS 1	19dBm	24dBm	±2dB	-90dBm	±2dB
	MCS 2	19dBm	24dBm	±2dB	-87dBm	±2dB
	MCS 3	18dBm	23dBm	±2dB	-83dBm	±2dB
	MCS 4	18dBm	23dBm	±2dB	-80dBm	±2dB
	MCS 5	17dBm	22dBm	±2dB	-77dBm	±2dB
	MCS 6	16dBm	21dBm	±2dB	-74dBm	±2dB
	MCS 7	14dBm	19dBm	±2dB	-73dBm	±2dB
	MCS 8	13dBm	18dBm	±2dB	-71dBm	±2dB
5GHz 802.11n/ac VHT40	MCS 0	18dBm	23dBm	±2dB	-90dBm	±2dB
	MCS 1	18dBm	23dBm	±2dB	-88dBm	±2dB
	MCS 2	18dBm	23dBm	±2dB	-85dBm	±2dB
	MCS 3	17dBm	22dBm	±2dB	-82dBm	±2dB
	MCS 4	17dBm	22dBm	±2dB	-80dBm	±2dB
	MCS 5	16dBm	21dBm	±2dB	-75dBm	±2dB
	MCS 6	15dBm	20dBm	±2dB	-73dBm	±2dB
	MCS 7	14dBm	19dBm	±2dB	-73dBm	±2dB
	MCS 8	13dBm	18dBm	±2dB	-70dBm	±2dB
	MCS 9	13dBm	18dBm	±2dB	-68dBm	±2dB
5GHz 802.11ac VHT80	MCS 0	18dBm	23dBm	±2dB	-89dBm	±2dB
	MCS 1	18dBm	23dBm	±2dB	-87dBm	±2dB
	MCS 2	18dBm	23dBm	±2dB	-85dBm	±2dB
	MCS 3	17dBm	22dBm	±2dB	-83dBm	±2dB
	MCS 4	17dBm	22dBm	±2dB	-80dBm	±2dB
	MCS 5	16dBm	21dBm	±2dB	-78dBm	±2dB
	MCS 6	15dBm	20dBm	±2dB	-75dBm	±2dB
	MCS 7	14dBm	19dBm	±2dB	-72dBm	±2dB
	MCS 8	13dBm	18dBm	±2dB	-70dBm	±2dB
	MCS 9	13dBm	18dBm	±2dB	-68dBm	±2dB

DIMENSION

ORDERING INFORMATION

For -40~75C operational temperature model, the model name will add -E

P/N	Model name	Description
8665-017	IPWAP-3004-1AC-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-011	IPWAP-3004-1AC-2S-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-012	IPWAP-3004-1AC-2SA-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-015	IPWAP-3004-1AC-2SB-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-018	IPWAP-3004-2AC-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-013	IPWAP-3004-2AC-2S-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-014	IPWAP-3004-2AC-2SA-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8665-016	IPWAP-3004-2AC-2SB-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Managed Switch + 2WAN ports; dual input 9V~56VDC; -20°C ~ 70°C
8662-024	IWAP-3004-1AC-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-011	IWAP-3004-1AC-2S-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-012	IWAP-3004-1AC-2SA-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/2 RS422 serial isolated ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-019	IWAP-3004-1AC-2SB-24V	One WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/2 RS485 serial isolated ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-025	IWAP-3004-2AC-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-013	IWAP-3004-2AC-2S-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-014	IWAP-3004-2AC-2SA-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/2 RS422 serial isolated ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C
8662-020	IWAP-3004-2AC-2SB-24V	Two WIFI 11ac/a/b/g/n Load Balancing Multifunction Router w/2 RS485 serial isolated ports and 4 Giga Ethernet Managed Switch + 2 WAN ports; dual 9V~56VDC; -20~70C

EMMC Flash Storage

P/N	Description
8850-113	8G
8850-114	16G
8850-115	32G

OPTIONAL ACCESSORIES - Management System

P/N	Model name	Description
9000-121	InstaAir	Cloud Based Fleet Management System for Routers ( View Datasheet )

OPTIONAL ACCESSORIES - Wi-Fi Antenna

Model name	Description
ANT11000051	2.4/5GHz SMA dipole Wi-Fi antenna, 3dBi (2.4GHz), 4dBi (5GHz)
ANT11000055	2.4/5GHz SMA dipole Wi-Fi antenna, 6dBi (2.4GHz), 4dBi (5GHz)

OPTIONAL ACCESSORIES - Antenna Base

Model name	Description
ADA11000052	Magnetic antenna base for Wi-Fi, RP SMA Jack Base, Length : 1M

Hardened Ethernet Connections

Hardened Routers

Indoor Rackmount / PoE / Fiber

Software / Accessories

Naming Rule

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports + 4 Gigabit Ethernet (PoE) Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage; 24V input

OVERVIEW

*Future Release
**Optional

FEATURES

*Future Release
**Optional

SPECIFICATIONS

WLAN Interface

Physical Ports & System

LED Indicators

Fault Contact

Power

Physical Characteristic

Environmental

Regulatory Approvals

Software

Software - Load Balancing

*Future Release
**Optional

RF PERFORMANCE TABLE

DIMENSION

ORDERING INFORMATION

EMMC Flash Storage

OPTIONAL ACCESSORIES - Management System

OPTIONAL ACCESSORIES - Wi-Fi Antenna

OPTIONAL ACCESSORIES - Antenna Base

About Lantech

Taiwan Quality

Contact Us

Hardened Ethernet Connections

Hardened Routers

Indoor Rackmount / PoE / Fiber

Software / Accessories

Naming Rule

I(P)WAP-3004

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports** + 4 Gigabit Ethernet (PoE) Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage**; 24V input

OVERVIEW

*Future Release**Optional

FEATURES

*Future Release**Optional

SPECIFICATIONS

WLAN Interface

Physical Ports & System

LED Indicators

Fault Contact

Power

Physical Characteristic

Environmental

Regulatory Approvals

Software

Software - Load Balancing

*Future Release**Optional

RF PERFORMANCE TABLE

DIMENSION

ORDERING INFORMATION

EMMC Flash Storage

OPTIONAL ACCESSORIES - Management System

OPTIONAL ACCESSORIES - Wi-Fi Antenna

OPTIONAL ACCESSORIES - Antenna Base

About Lantech

Taiwan Quality

Contact Us

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports + 4 Gigabit Ethernet (PoE) Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage; 24V input

*Future Release
**Optional

*Future Release
**Optional

*Future Release
**Optional
