T(P)GS-0008TD (IP67/IP54)

8 GE (PoE) M12 Unmanaged Ethernet Switch


PoE 802.3at/af 30W PoE off timer EN50155 FCC CE UKCA WEEE RoHS2


Datasheet   Manual

OVERVIEW

Lantech T(P)GS-0008TD is an 8-port 10/100/1000 Base-T unmanaged Ethernet switch featuring 8 PoE ports (802.3at/af, PoE model) and M12 connectors. Designed for industrial rolling stock applications, it offers IP67/IP54-rated protection to withstand harsh environments. Certified to EN50155, ITxPT*, and E-marking*, ensuring compliance with world class standards for reliability and performance.


Redundant dual 24VI/24TVI input with inrush current prevention and EN50155 verification with high ESD and polarity reverse protection；PoE model supports up to 8 PoE at/af ports and PoE galvanic isolation
Complying with IEEE 802.3af/at standards, the PoE model to supply up to 30W per port with a total PoE budget of 80W for various IP PD devices. PoE galvanic isolation up to 1.5KVDC ensures insulation between the power input and PoE Ethernet ports, preventing cabling or grounding incidents from damaging the switch.


Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored. The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.


E-marking certificate* ; ISO 16750-2 P5A compliant
T(P)GS-0008TD features IP54 enclosure with M12 connectors for dust/water protection, compliant with EMI, safety, free fall, shock, vibration tests, and ISO 16750-2 P5A to resist motor pulse voltages, effectively minimizing the impact of high-frequency pulse voltages commonly generated by motor applications.


*Future release **Optional

SPECIFICATIONS

Hardware Specifications

IEEE Standard

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-T Ethernet
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet (PoE model)

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Mac Address

16K MAC address table

Connector

10/100/1000T: 8 x M12, 8-pole X-coded connector, Female with auto MDI/MDI-X function
Power connector: 1 x M12, 4-pole A coded, Male

LED

Per unit: Power 1 (Green), Power 2 (Green),
Ethernet: Link/Activity (Green)

PoE pin assignment (PoE model)

M12 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W



PoE pin assignment:
P1,3: V+
P2,4: V-

Power Supply

Dual input
9~36VDC (24VI model)

Power Consumption

5.06W (w/o PoE load)

Power Budget

Total 80W @ 24VDC and above

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 70°C (-40°F ~ 167°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Case Dimension

Aluminum case, IP67/IP54 rated
178mm(W)x125mm(H)x53mm(D)

Weight

850g

Installation

Wall Mount Design

EMC

FCC Part 15, Subpart B ICES-003 Issue 7,
EN 55035:2017/A11:2020,
EN 55032:2015/A11:2020,
IEC 61000-4-2:2008,
IEC 61000-4-3:2020,
IEC 61000-4-4:2012,
IEC 61000-4-5:2014+AMD1:2017 CSV,
IEC 61000-4-6:2023,
IEC 61000-4-8:2009,
IEC 61000-6-2:2016,
IEC 61000-6-4:2018,
EN IEC 61000-6-2:2019,
EN IEC 61000-6-4:2019,
BS EN 55035:2017+A11:2020,
BS EN 55032:2015+A11:2020

Verification

EN 50155: 2021
EN 50121-4: 2016/ A1: 2019
EN 50121-3-2: 2016/ A1: 2019
EN45545-1, EN 45545-2 Fire & Smoke

Vehicle Certificate

E24 marking* (UN ECE R10),R118
ITxPT labeled*

MTBF

TBC

*Future release **Optional

DIMENSION

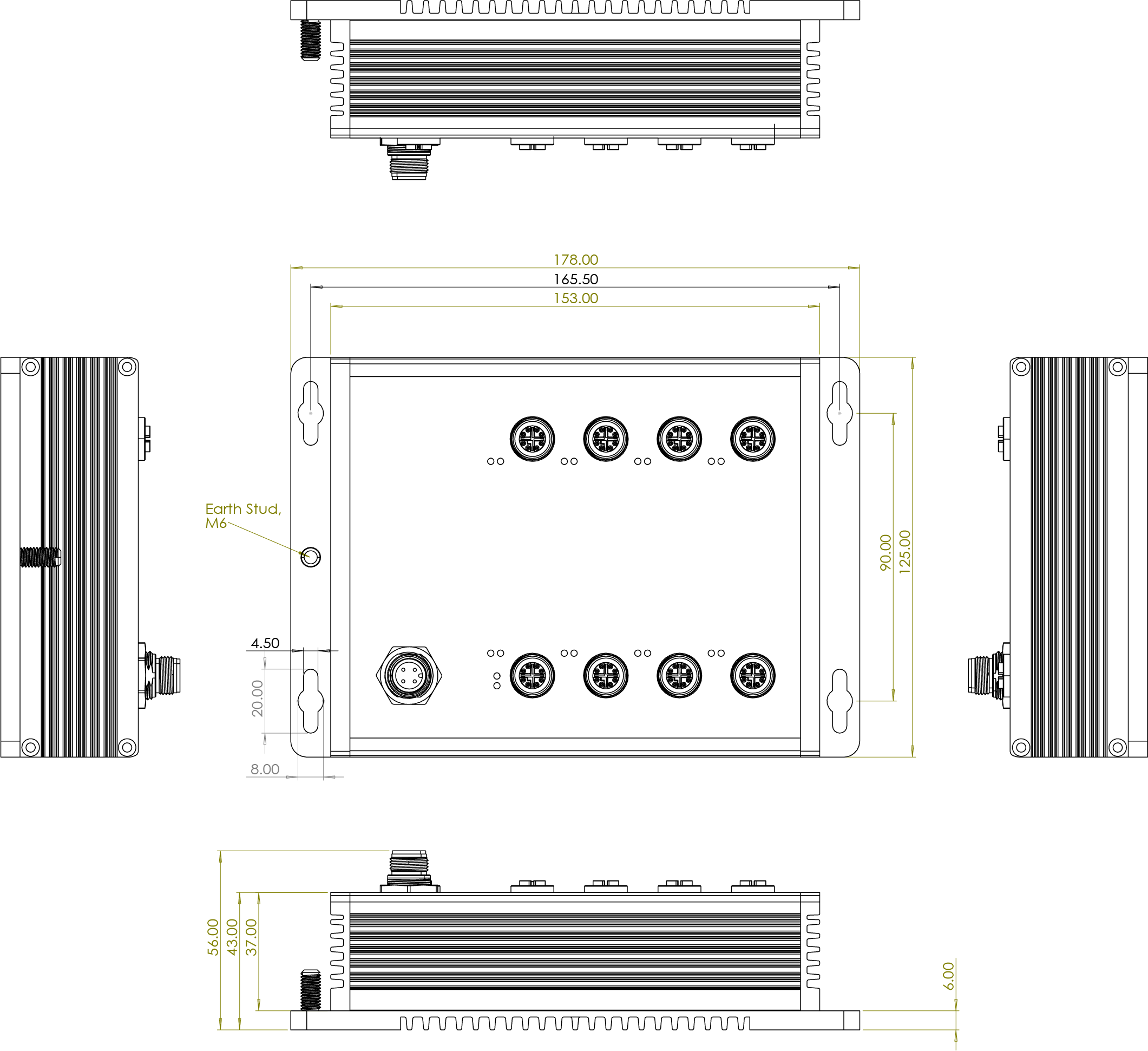

PoE models

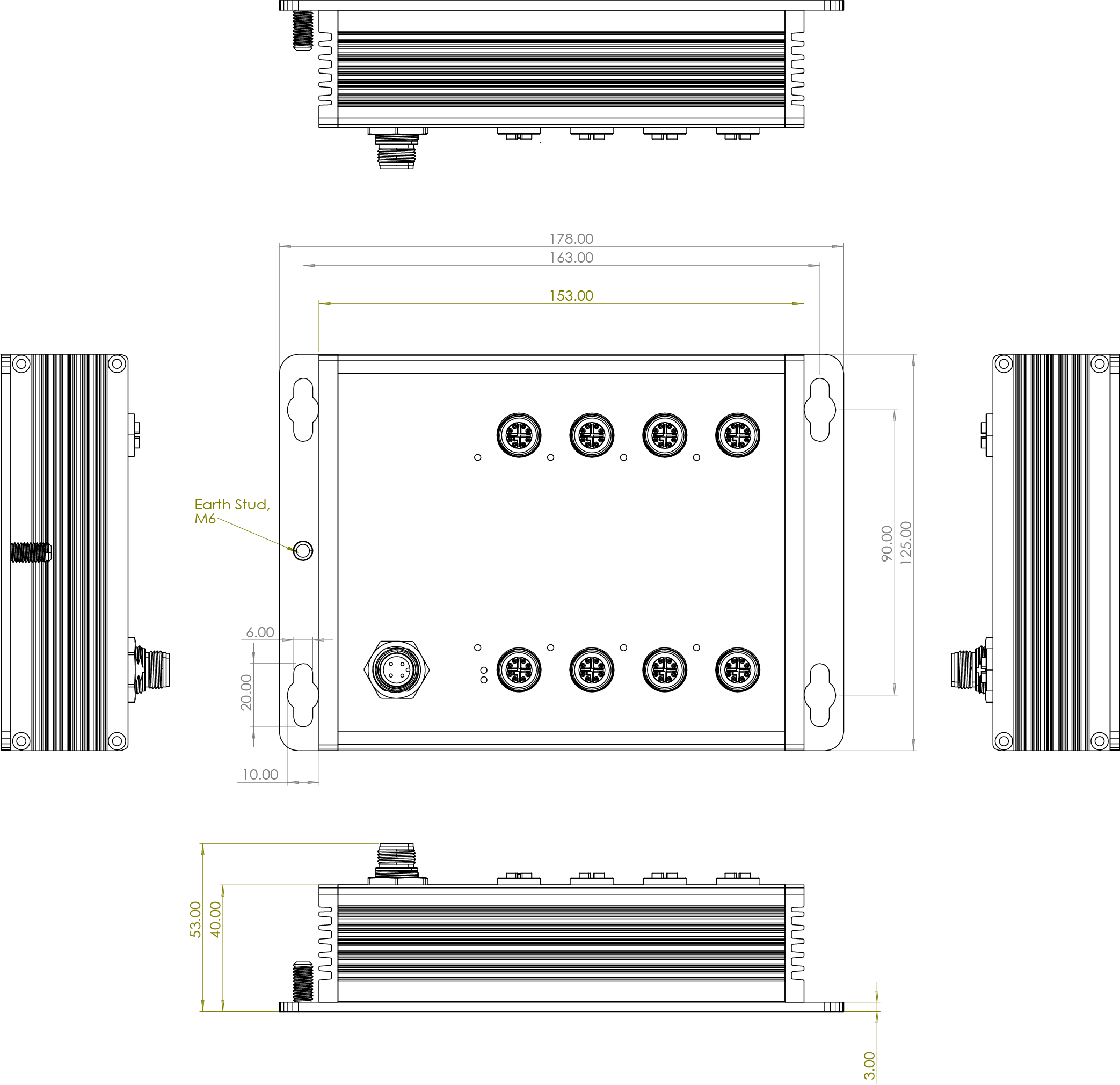

Non-PoE models (IP67)

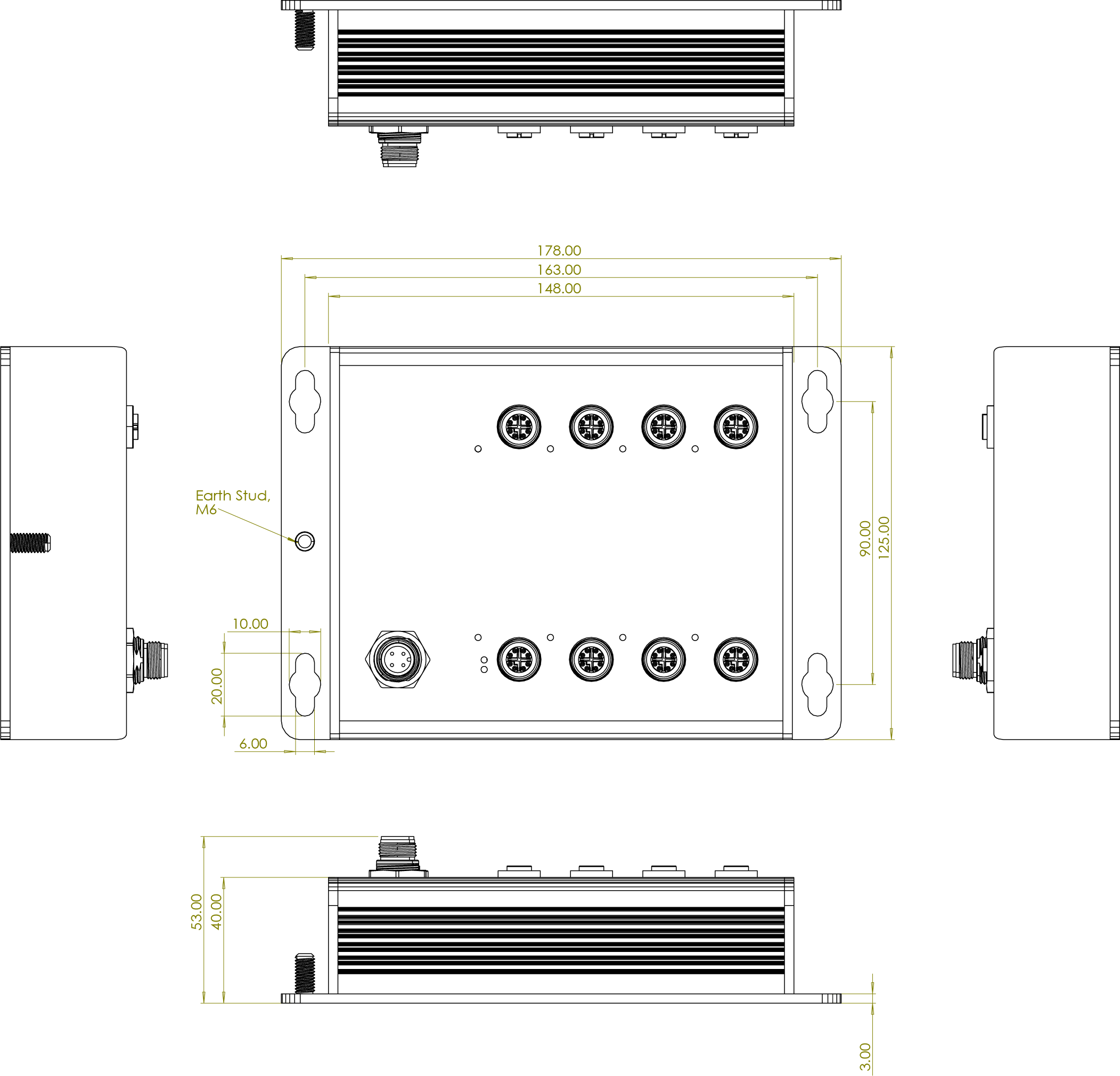

Non-PoE models (IP54)

ORDERING INFORMATION

All model packages include M12 caps and wall mount brackets. All standard models are non-coating, optional coating models are available with –C model name; for push-pull inner-lock connector model add -PP

P/N Model name Description
8351-15701 TPGS-0008TD-8-67-24VI-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated
8351-15703 TPGS-0008TD-8-67-24VI-IGN-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated w/ignition
8351-15702 TPGS-0008TD-8-67-24TVI-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP67 rated
8351-15721 TPGS-0008TD-8-54-24VI-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated
8351-15723 TPGS-0008TD-8-54-24VI-IGN-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated w/ignition
8351-15722 TPGS-0008TD-8-54-24TVI-E 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP54 rated
8351-157 TGS-0008TD-67-24VI-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated
8351-15711 TGS-0008TD-67-24VI-IGN-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated w/ignition
8351-1571 TGS-0008TD-67-24TVI-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP67 rated
8351-1572 TGS-0008TD-54-24VI-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated
8351-15725 TGS-0008TD-54-24VI-IGN-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated w/ignition
8351-15724 TGS-0008TD-54-24TVI-E 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP54 rated


OPTIONAL ACCESSORIES - Connector

Model name Description
ECON120005PF 5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-04A(F)-C-180 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08X(M)-SPEEDCON 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON


OPTIONAL ACCESSORIES - Cable

Model name Description
ECONM12-5P(F)70CM CABLE 5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm
ECONM12-4P(F)1.5M CABLE 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECABM12X83MSTP 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECONM12-05A(F) to MCP 6P-20CM CABLE 5 pin M12 (Female) A-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models)
