T(P)GS-5208GF (IP67/IP54)

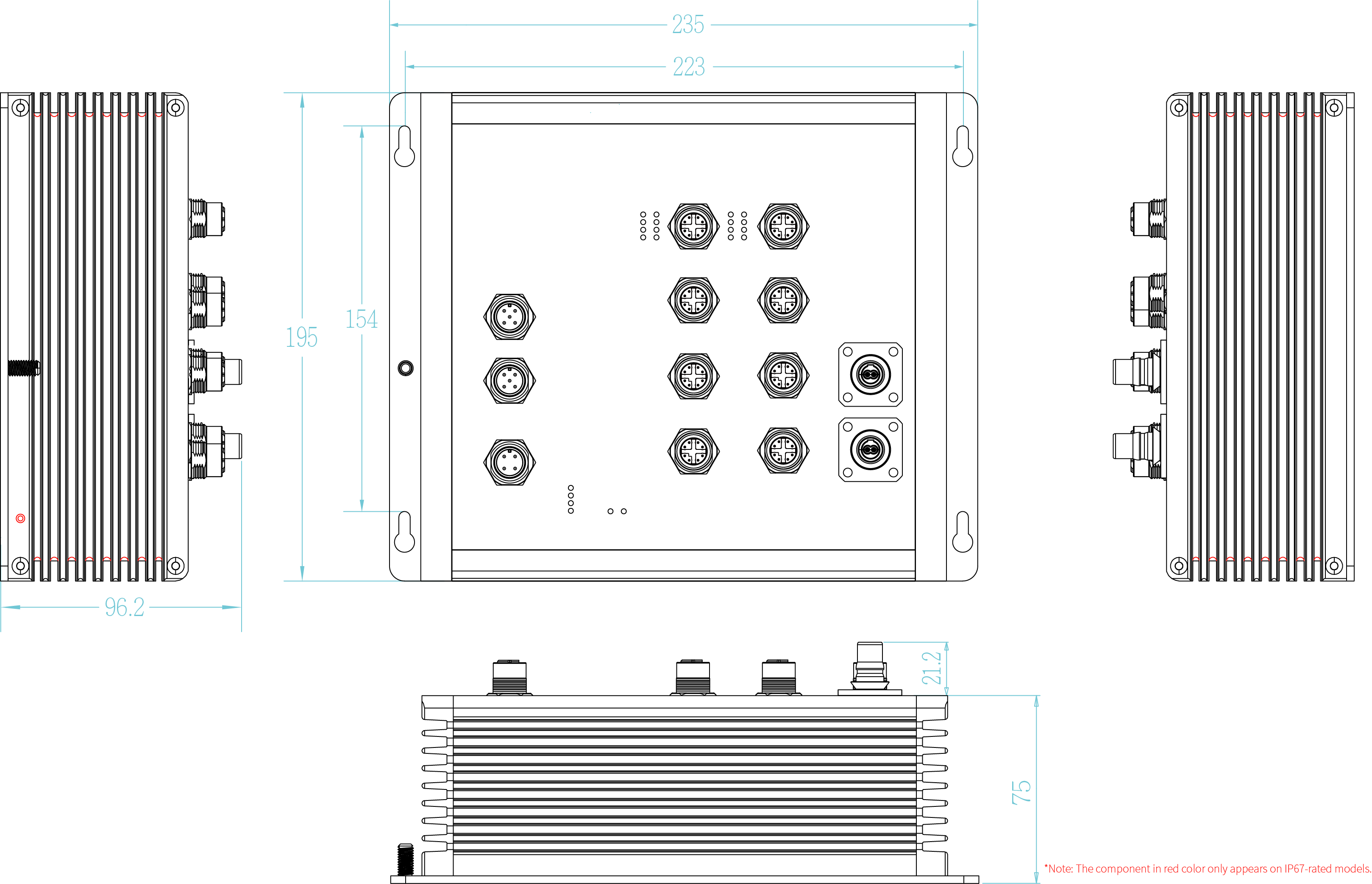

OVERVIEW

Lantech T(P)GS-5208GF is a high performance L2+ All Gigabit Ethernet switch with 8 10/100/1000T + 2 1000FX QMM/QSM Fiber Q-ODC (w/8 PoE at/af ports at M12 X-coded) providing L2 wire speed and advanced security function for network aggregation deployment. It houses in an IP67/IP54 aluminum compact enclosure that is waterproof and will prevent moisture ingress due to temperature fluctuations. It delivers ITU G.8032 enhanced ring recovery less than 20ms including train coupling ring, enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82 relay, QinQ VLAN, DHCP server and DHCP Option 82 server, IGMPv1/v2/v3/router port, which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.

Selection of dual WVI (16.8V~137.5VDC) input or 24VI (9V~36VDC) or 24TVI (16.8V~56VDC); Inrush current protection
WVI model w/ Ethernet and PoE galvanic isolation accepts 16.8~137.5VDC dual input and can feed 54V output with max 80W PoE budget. 24VI model w/ Ethernet and PoE galvanic isolation accept 9~36VDC dual input for PoE feeding with max 80W budget. 24TVI model w/ Ethernet and PoE galvanic isolation accept 9~36VDC dual input for PoE feeding with max 80W budget. (PoE model) The inrush current on initial power up can be limited lower than 10 x nominal current.

PoE +, Advanced PoE management (PoE model)
Lantech TPGS-5208GF supports IEEE802.3at/af standard which can feed power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, wireless AP etc. The advanced PoE management includes PoE detection and scheduling besides the regular PoE per port status. PoE detection can detect if the connected PD is hang up then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Per port PoE status can remotely On/Off the power and display information of voltage, current, watt and PoE temperature.

Enhanced G.8032 ring, 16 MSTI MSTP; MRP Ring
Lantech T(P)GS-5208GF features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering multicast packets. It also supports various ring topologies that covers multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 16 MSTI. MRP (Media Redundancy Protocol) can be supported for industrial automation networks.

QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.

802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.

IGMPv3,GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.

Miss-wiring avoidance, Loop protection, Node failure protection
The T(P)GS-5208GF (IP67/IP54) also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech T(P)GS-5208GF (IP67/IP54) is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.

Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN
Lantech OS1 Ethernet switches comply with IEC 61375-3-4 (ECN) standard. The support of Ethernet Consist Network allows interconnection between end devices located in single consist of train and interoperability with IEC61375-2-5 (ETBN).

Editable configuration file; Optional N-key auto backup, Exported text file
The configuration file of Lantech T(P)GS-5208GF (IP67/IP54) can be exported and edited with word processor for the other switches configuration with ease. The optional N-key configurator offers firmware upgrade, auto backup/ editable configuration restore without computer by adjusting the DIP switch. The built-in watchdog design can automatically reboot the switch when CPU is found dead.

Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.

User friendly UI, Auto topology drawing, complete CLI
The user-friendly UI, innovative auto topology drawing and topology demo makes T(P)GS-5208GF much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.

Event log & message; 2 DI + 2 DO
In case of event alarm, the T(P)GS-5208GF will immediately send an email** to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for inside switch info
The built-in environmental monitoring can detect switch overall temperature, input voltage, current and total PoE load where can send the SNMP traps and email** when abnormal.

EN50155, 45545-2, 50121-3-2, 61373 certified; High ESD protection
Lantech T(P)GS-5208GF features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

The T(P)GS-5208GF is designed to meet with critical network environment with IP67/IP54 aluminum enclosure and M12 connectors for water proof. With EN45545-2 Fire & Smoke, and EN50155 & 61373 verification, the T(P)GS-5208GF is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, T(P)GS-5208GF supports wide operating temperature from -40°C to 75°C.
