1Gbps, 10/100/1000BASE-T Copper SFP Transceiver
- Distance: 100m
- Standard Operating Temperature: -10°C ~ 70°C
- Wide Operating Temperature: -40°C ~ 85°C
OVERVIEW
Lantech 1Gbps Small Form Factor Pluggable (SFP) transceiver module is specifically designed for the high performance integrated full duplex data link at 1Gbps over four pair Category 5 UTP. The transceiver module is compliant with the SFP MultiSource Agreement (MSA) and IEEE802.3:2002. With the hot pluggability, the module offers a flexible and easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online.
The 10/100/1000BASE-T electrical SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC. The link length is up to 100m over four pair Category 5 UTP cabling
FEATURES
- Small Form Factor Pluggable (SFP) MSA Compliant
- Compatible with IEEE 802.3:2002
- 10/100/1000BASE-T operation in host system with SGMII interface
- Link length up to 100m at 1Gbps with four pair Category 5 UTP cabling
- Auto-detect MDI/MDI-X
- Internal PHY IC is configurable by host system via I2C interface
- Single 3.3V power supply operation and low power dissipation
SPECIFICATIONS
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Max. |
Unit |
Note |
Storage Temperature |
Ts |
-40 |
+85 |
°C |
1 |
Supply Voltage |
Vcc |
-0.5 |
3.6 |
V |
|
Storage Relative Humidity |
RH |
5 |
95 |
% |
|
Notes: 1. Ambient Temperature |
|||||
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Case Operating Temperature |
Tc |
-10 / -40 |
|
70 / 85 |
°C |
1 |
Supply Voltage |
Vcc |
3.15 |
3.3 |
3.45 |
V |
|
Supply Current |
ITX + IRX |
|
300 |
350 |
mA |
|
Notes: 1. Case Temperature, Standard Operating Temperature / Wide Operating Temperature (-E model) |
||||||
General Specifications
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Data Rate |
DR |
10 |
|
1000 |
Mb/sec |
1 |
Bit Error Rate |
BER |
|
|
10-10 |
|
2 |
High-Speed Electrical Interface, Host to SFP
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
TD+, TD- Input Voltage Swing |
Vin+ |
250 |
|
1200 |
mV |
2 |
RD+, RD- Output Voltage Swing |
Vout+ |
250 |
|
800 |
mV |
2 |
Rise Time (Receiver) |
tr |
|
180 |
250 |
ps |
1 |
Fall Time (Receiver) |
tf |
|
180 |
250 |
ps |
1 |
Tx Input Impedance |
Zin |
|
50 |
|
Ohm |
2 |
Rx Output Impedance |
Zout |
|
50 |
|
Ohm |
2 |
Notes: 1. 20% to 80% value 2. Single ended |
||||||
High-Speed Electrical Interface, Cable to SFP
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Transmission Frequency |
ft |
|
125 |
|
MHz |
1 |
Tx Output Impedance |
Zout.Tx |
|
100 |
|
Ohm |
2 |
Rx Output Impedance |
Zin.Rx |
|
100 |
|
Ohm |
2 |
Notes: 1. 4D-PAM-5 encoding per IEEE802.3: 2002 2. Differential for frequencies ranging from 1MHz to 125MHz |
||||||
MTBF
60% Confidence Level, 25°C |
90% Confidence Level, 25°C |
||
MTBF |
FIT |
MTBF |
FIT |
1848923 |
541 |
739569 |
1352 |

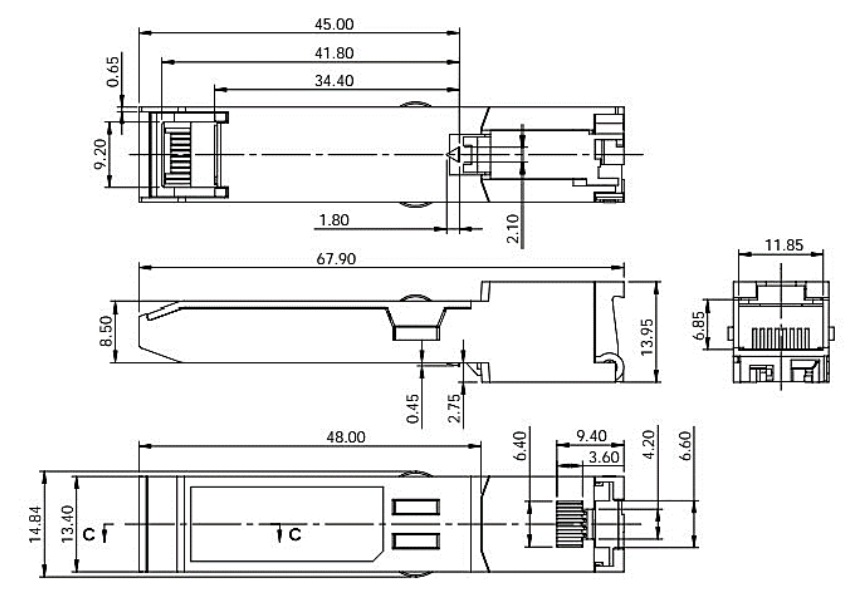

DIMENSION
*All dimensions are ±0.2mm unless otherwise specified
ORDERING INFORMATION
| Part Number | Description |
|---|---|
| 8330-168-V1 | 10/100/1000Base-T, SFP, 100m, 3.3V, -10~70°C |
| 8330-168E-V1 | 10/100/1000Base-T, SFP, 100m, 3.3V, -40~85°C |
